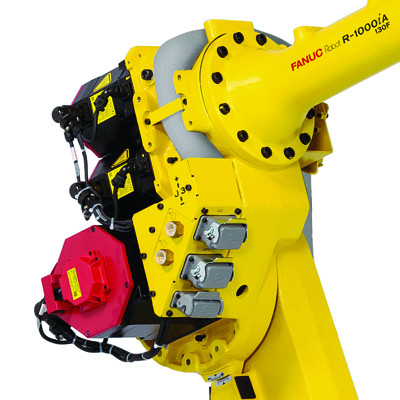

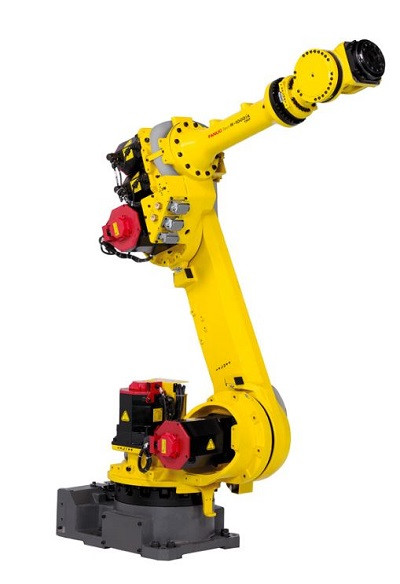

Palletizer FANUC R-1000iA/130F
- Manufacturer
-
- Reach
- 2230 mm
- Payload
- 130 kg
- Model
- R-1000iA/130F
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | R-1000iA/130F |
| Reach, mm | 2230 |
| Axes | 6 |
| Payload, kg | 130 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 675 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 245 |
| J3 | 360 |
| J4 | 720 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 130 |
| J2 | 110 |
| J3 | 120 |
| J4 | 170 |
| J5 | 170 |
| J6 | 250 |
