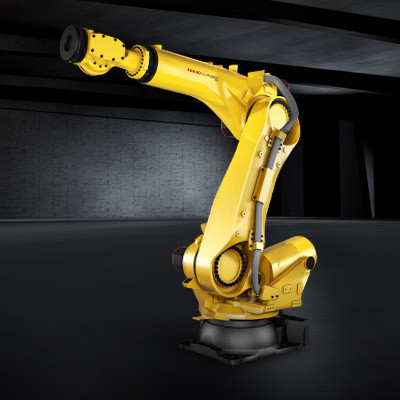

Palletizer FANUC R-2000iC/270F
- Manufacturer
-
- Reach
- 2655 mm
- Payload
- 270 kg
- Model
- R-2000iC/270F
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | R-2000iC/270F |
| Reach, mm | 2655 |
| Axes | 6 |
| Payload, kg | 270 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 1320 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 136 |
| J3 | 312 |
| J4 | 720 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 105 |
| J2 | 90 |
| J3 | 85 |
| J4 | 120 |
| J5 | 120 |
| J6 | 200 |
