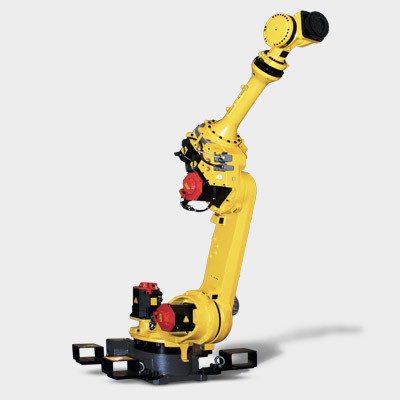

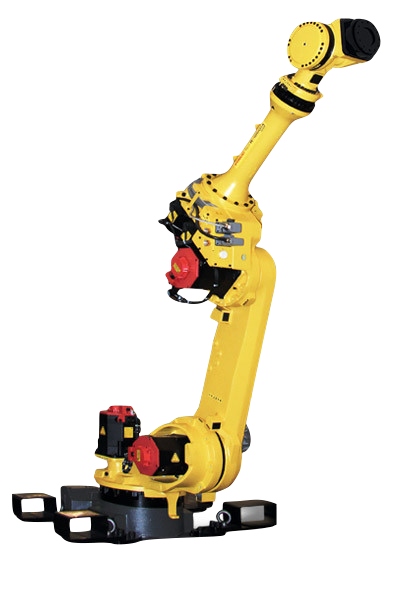

Palletizer FANUC R-1000iA/100F

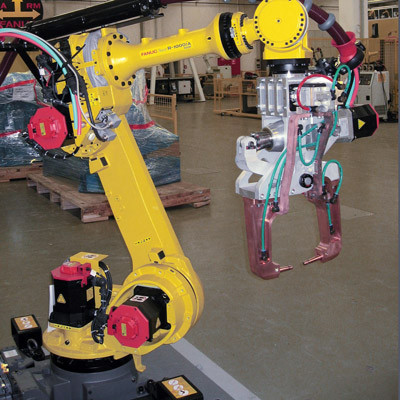

FANUC R-1000iA/130F is a 6-axis high-speed industrial robot with a large payload of 100 kg. The R-1000iA/80F is ideal for a wide range of applications from assembly and packaging, and especially for spot welding, while its long reach and high repeatability help reduce processing times and improve productivity.

Features:

Large lifting capacity of 100 kg
Large working range of 2230 mm
Excellent accuracy
Various mounting options
Ability to work in confined spaces

Manufacturer

Reach: 2230 mm
Payload: 100 kg

Model: R-1000iA/100F
Axes: 6

Industries

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	R-1000iA/100F
Reach, mm	2230
Axes	6

Payload, kg	100
Repeatability mm, mm	± 0.03
Weight kg, kg	665
Controller	R-30iB Plus
Type	Articulated robot

Motion range, °
J1	360
J2	245
J3	360
J4	720
J5	250
J6	720

Maximum speed, °/s
J1	130
J2	110
J3	120
J4	170
J5	170
J6	250
