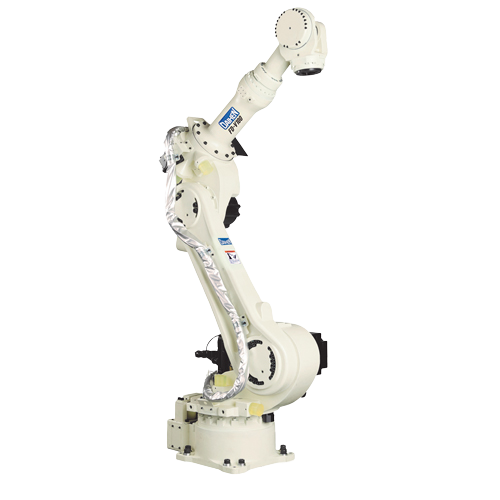

Industrial Robot OTC Daihen FD-V100

Reach: 2236 mm
Payload: 100 kg

Model: FD-V100
Axes: 6

Industries

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	OTC Daihen
Model	FD-V100
Country	Japan
Reach, mm	2236
Axes	6

Payload, kg	100
Repeatability mm, mm	± 0.08
Weight kg, kg	770

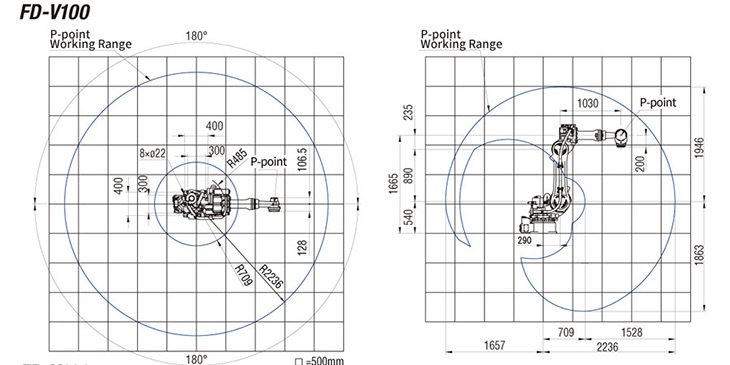

Motion range, °
J1 (Rotation)	± 180
J2 (Lower Arm)	- 155/+ 90
J3 (Upper Arm)	- 185/+ 220
J4 (Swing)	± 360
J5 (Bending)	- 35/+ 215
J6 (Twist)	± 360

Maximum speed, °/s
J1 (Rotation)	140
J2 (Lower Arm)	110
J3 (Upper Arm)	140
J4 (Swing)	175
J5 (Bending)	175
J6 (Twist)	255

Protection
Base axes	IP54
Wrist axes	IP67/69
