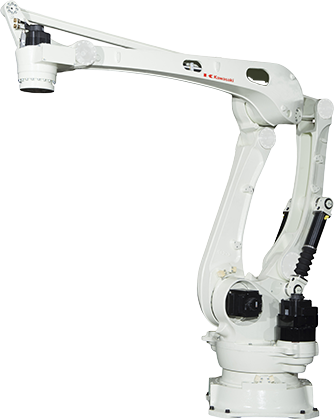

Palletizer Kawasaki CP300L
CP300L - 4-axis industrial robot palletizer from Kawasaki with one of the best cycle times, wide travel range, 300 kg load capacity, compact and energy-saving controller and simple and intuitive operation. CP300L will provide reliability and high speed and accuracy of pallet assembly and help to increase the efficiency of production lines.
Features:
High speed and positioning accuracy

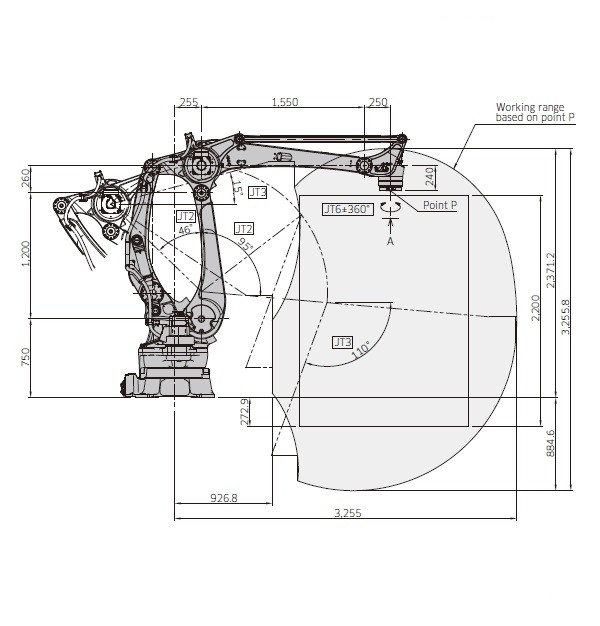

Working range 3255 mm
Load capacity 300 kg
- Manufacturer
-
- Reach
- 3255 mm
- Payload
- 300 kg
- Model
- 4
- Axes
- CP300L
- Industries
- Solutions
Specifications
| Manufacturer | Kawasaki |
| Model | 4 |
| Country | Japan |
| Reach, mm | 3255 |
| Axes | CP300L |
| Payload, kg | 300 |
| Repeatability mm, mm | ± 0.5 |
| Weight kg, kg | 1600 |
| Mounting position | Floor |
| Controller | E03 |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | ± 160 |
| J2 | + 95/-46 |
| J3 | + 15/-110 |
| J4 | ± 360 |
| Maximum speed, °/s | |
|---|---|
| J1 | 115 |
| J2 | 115 |
| J3 | 120 |
| J4 | 250 |
