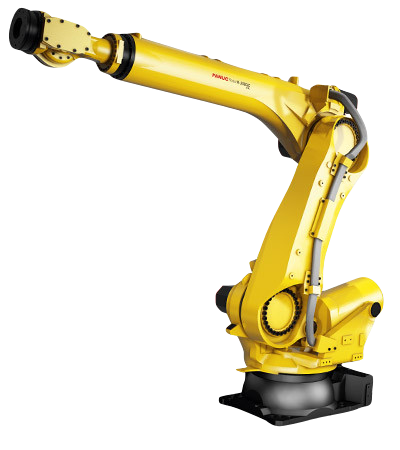

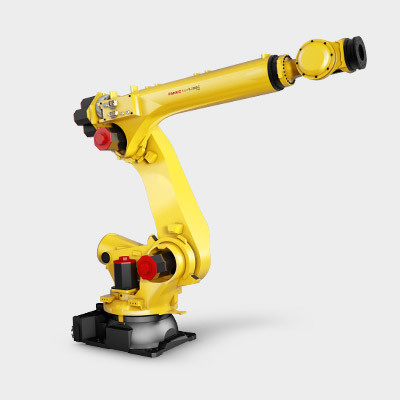

Palletizer FANUC R-2000iC/210L
Fanuc R-2000iC/210L 6-axis long-arm general-purpose industrial robot capable of handling payloads up to 210 kg, a working radius of 3060 mm and an accuracy of ± 0.05 mm. The R-2000iC/210L is ideal for a wide range of applications - from assembly and packaging to spot welding, and its long reach and high repeatability help reduce processing times and increase productivity.
Features:
Large lifting capacity of 210 kg
Large working range of 3060 mm
Excellent precision
Maximum productivity
- Manufacturer
-
- Reach
- 3060 mm
- Payload
- 210 kg
- Model
- R2000iC/210L
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | R2000iC/210L |
| Reach, mm | 3060 |
| Axes | 6 |
| Payload, kg | 210 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 1350 |
| Controller | R-30iB Plus |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 136 |
| J3 | 301 |
| J4 | 720 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 105 |
| J2 | 90 |
| J3 | 85 |
| J4 | 120 |
| J5 | 120 |
| J6 | 200 |
