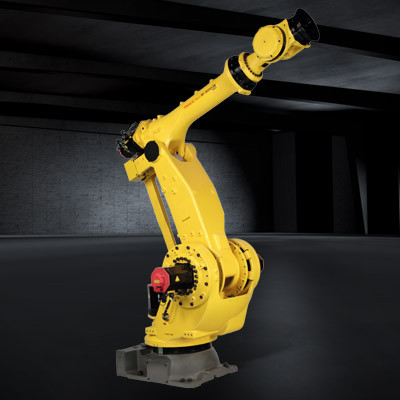

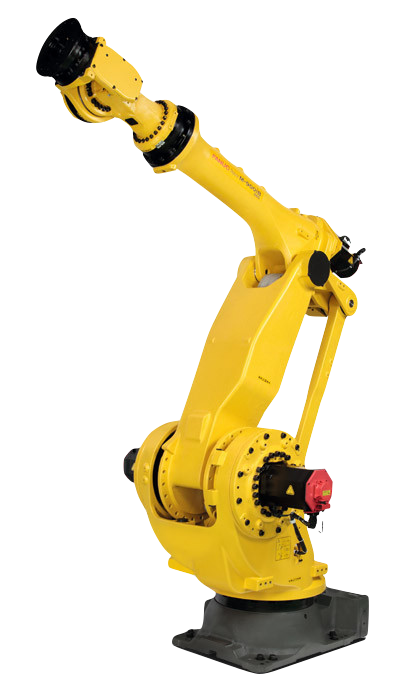

Palletizer FANUC M-900iB/360
- Manufacturer
-
- Reach
- 2655 mm
- Payload
- 360 kg
- Model
- M900iB/360
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M900iB/360 |
| Reach, mm | 2655 |
| Axes | 6 |
| Payload, kg | 360 |
| Repeatability mm, mm | ± 0.1 |
| Weight kg, kg | 1540 |
| Controller | R-30iB |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 151 |
| J3 | 224 |
| J4 | 720 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 110 |
| J2 | 105 |
| J3 | 100 |
| J4 | 110 |
| J5 | 110 |
| J6 | 180 |
