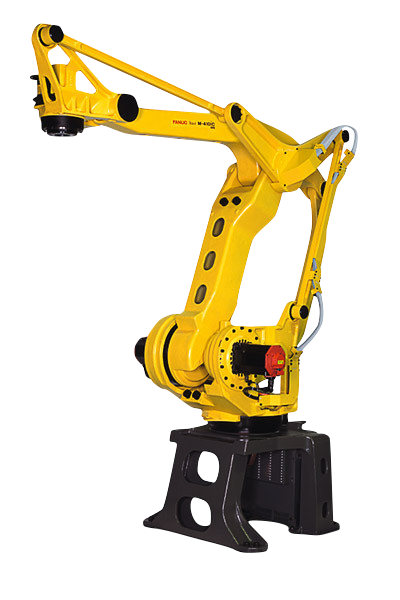

Palletizer FANUC M-410iC/185
FANUC M-410iC/185 - 4-axis robot palletizer with a payload of up to 185 kg is designed for fast and efficient palletizing of heavy products. The speed and accuracy of the M-410iC/185 makes it ideal for high-volume production.
Features:
Large load capacity of 185 kg
Working range of 3143 mm
High speed and accuracy of pallet stacking
- Manufacturer
-
- Reach
- 3143 mm
- Payload
- 185 kg
- Model
- M-410iC/185
- Axes
- 4
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-410iC/185 |
| Reach, mm | 3143 |
| Axes | 4 |
| Payload, kg | 185 |
| Repeatability mm, mm | ± 0.5 |
| Weight kg, kg | 1600 (1300) |
| Controller | R-30iB |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 144 |
| J3 | 136 |
| J4 | 720 |
| J5 | - |
| J6 | - |
| Maximum speed, °/s | |
|---|---|
| J1 | 140 |
| J2 | 140 |
| J3 | 140 |
| J4 | 305 |
| J5 | - |
| J6 | - |
