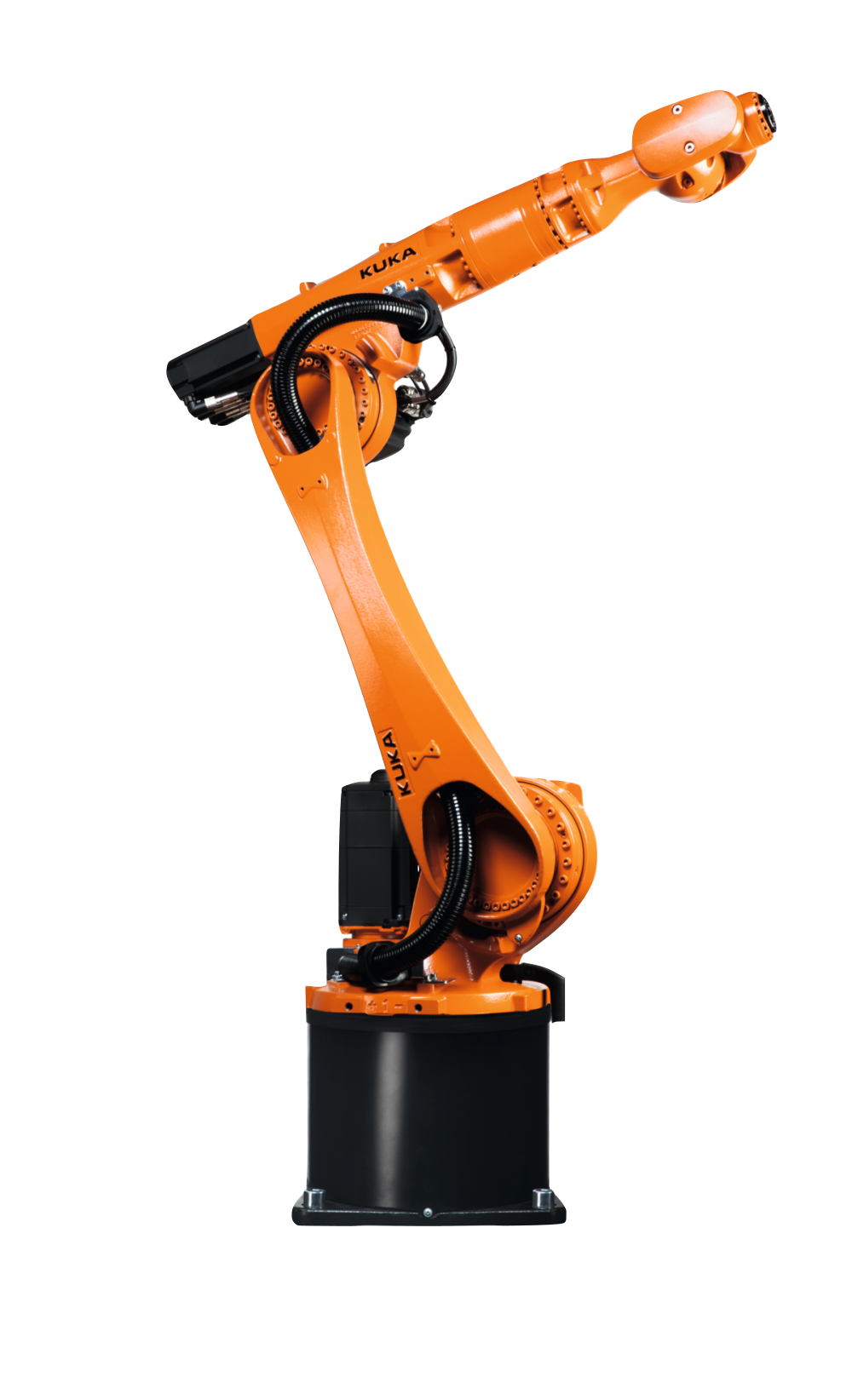

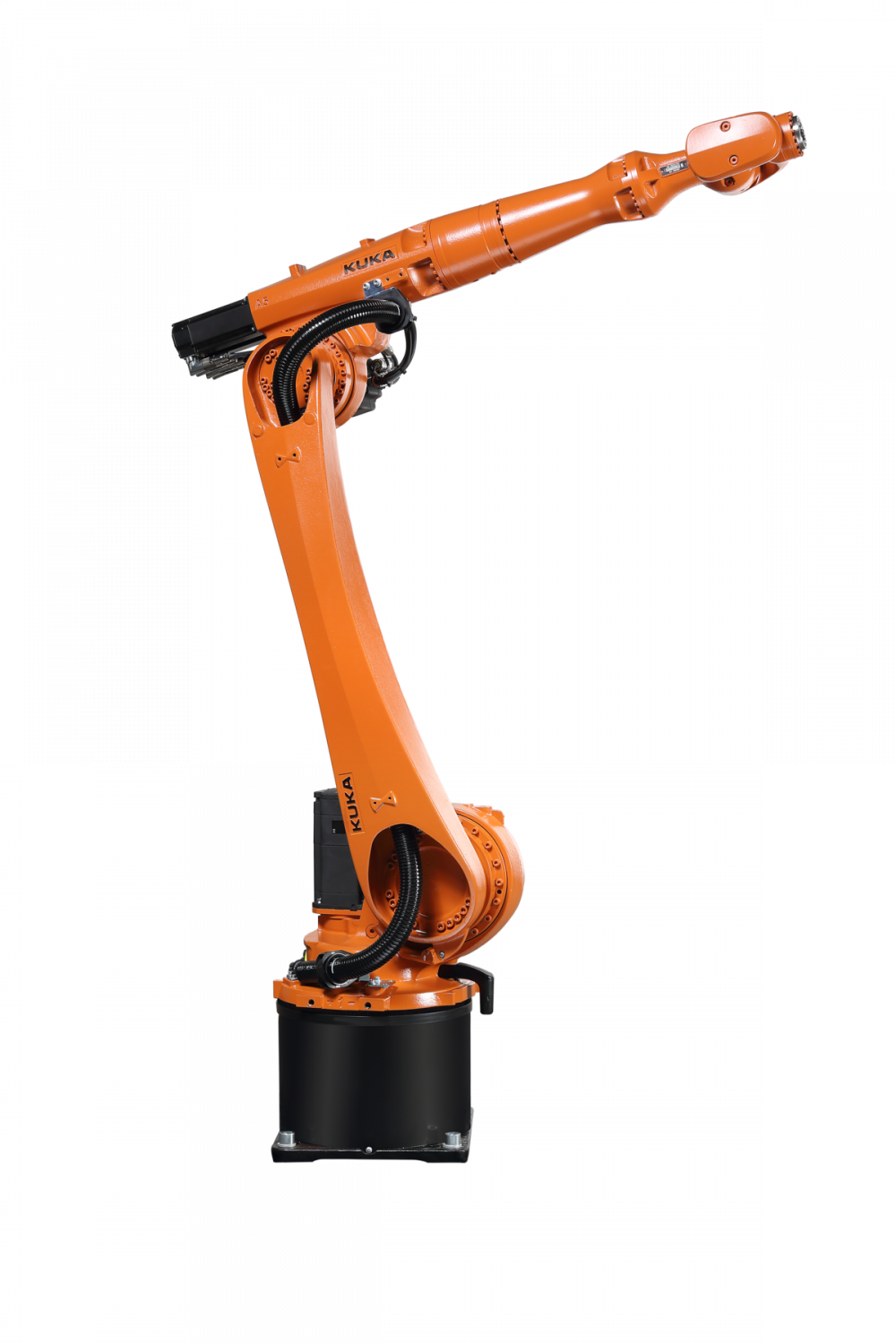

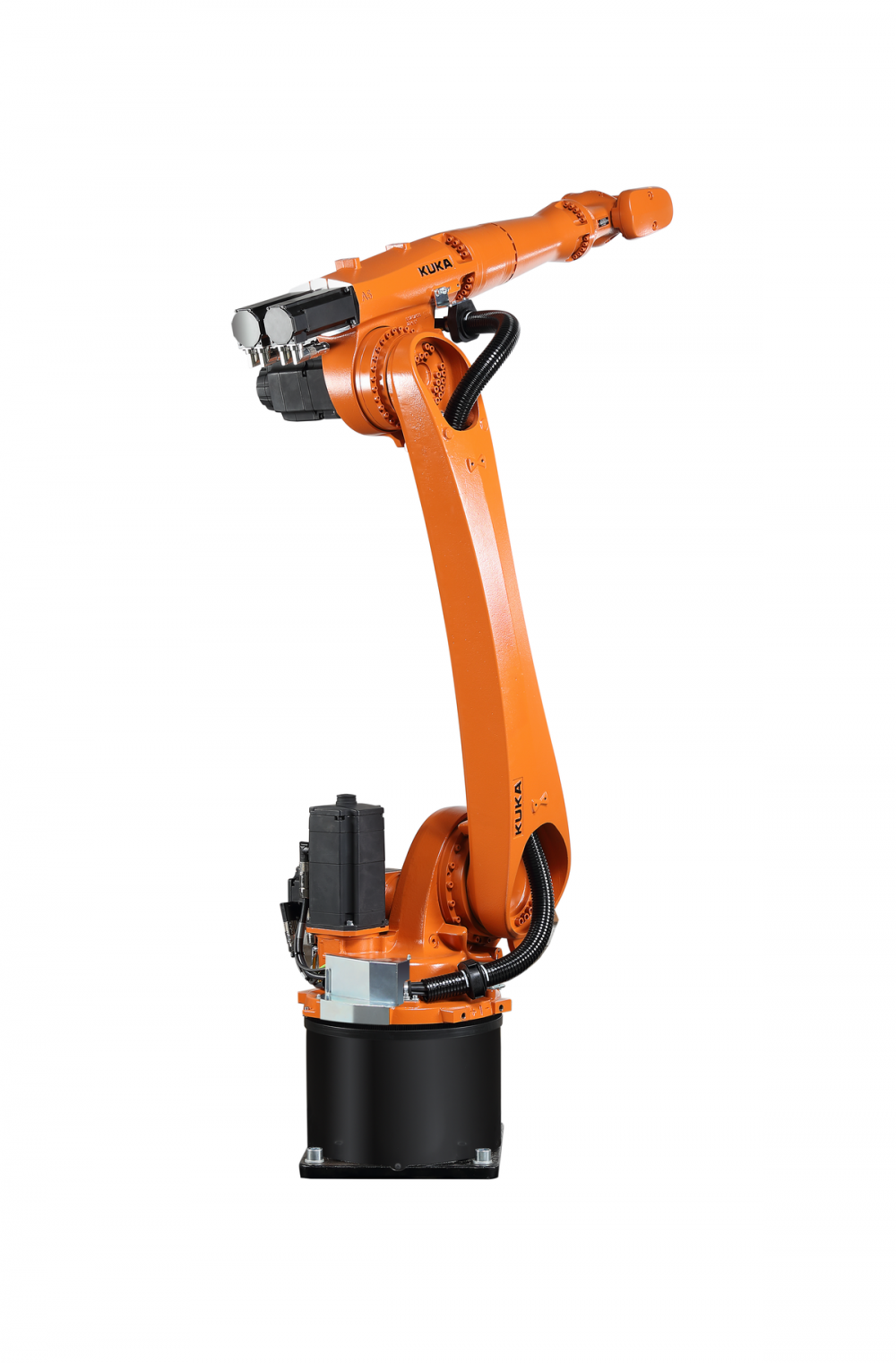

Industrial robot KUKA KR 22 R1610-2

KR 22 R1610-2 - a 6-axis industrial robot with a compact and hollow design from KUKA from the KR CYBERTECH series, capable of providing maximum productivity due to its high speed and positioning accuracy, with minimal maintenance and low costs. KR 22 R1610-2 is ideal for work in confined spaces, for tasks requiring handling of loads up to 22 kg, assembly, packaging and welding.

Features:

  • Hollow and compact design

  • Large working radius of 1611 mm

  • High positioning accuracy

  • Ability to work in limited spaces

Manufacturer
Reach
1612 mm
Payload
22 kg
Model
KR 22 R1610-2
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 22 R1610-2
Reach, mm 1612
Axes 6
Payload, kg 22
Repeatability mm, mm 1612
Weight kg, kg 255
Controller KUKA KR C4 Controller
Motion range, °
J1 ±185
J2 -185/65
J3 -138/175
J4 ±350
J5 ±130
J6 ±350
Maximum speed, °/s
J1 200
J2 175
J3 190
J4 430
J5 430
J6 630
