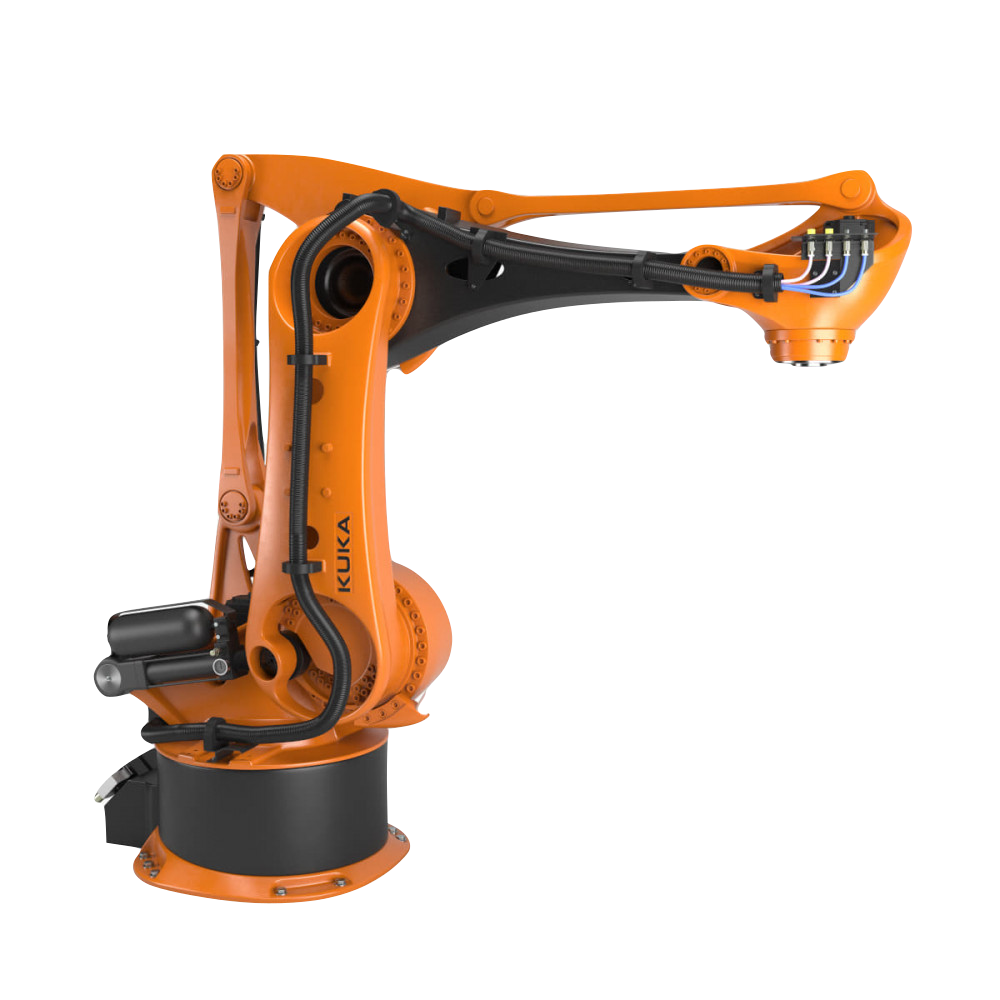

Palletizer KUKA KR 700 PA
KR 700 PA - industrial robot palletizer from KUKA with a robust design, which will allow you to easily move loads weighing up to 700 kg, quickly and accurately stack high pallets, reduce cycle time and your costs. The design of the 4-axis robot palletizer allows you to stack pallets to a height of up to 3320 mm.
Features:
High load capacity up to 700 kg
Large working range of 3320 mm
Accurate and non-stop palletizing
- Manufacturer
-
- Reach
- 3320 mm
- Payload
- 700 kg
- Model
- KR 700 PA
- Axes
- 4
- Industries
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 700 PA |
| Country | Germany |
| Reach, mm | 3320 |
| Axes | 4 |
| Payload, kg | 700 |
| Repeatability mm, mm | ± 0.08 |
| Mounting position | Floor |
| Controller | KUKA KR C4 Controller |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | ± 185 |
| J2 | - 120/10 |
| J3 | 10/150 |
| J4 | - |
| J5 | - |
| J6 | ± 350 |
| Maximum speed, °/s | |
|---|---|
| J1 | 76 |
| J2 | 76 |
| J3 | 67 |
| J4 | - |
| J5 | - |
| J6 | 168 |
