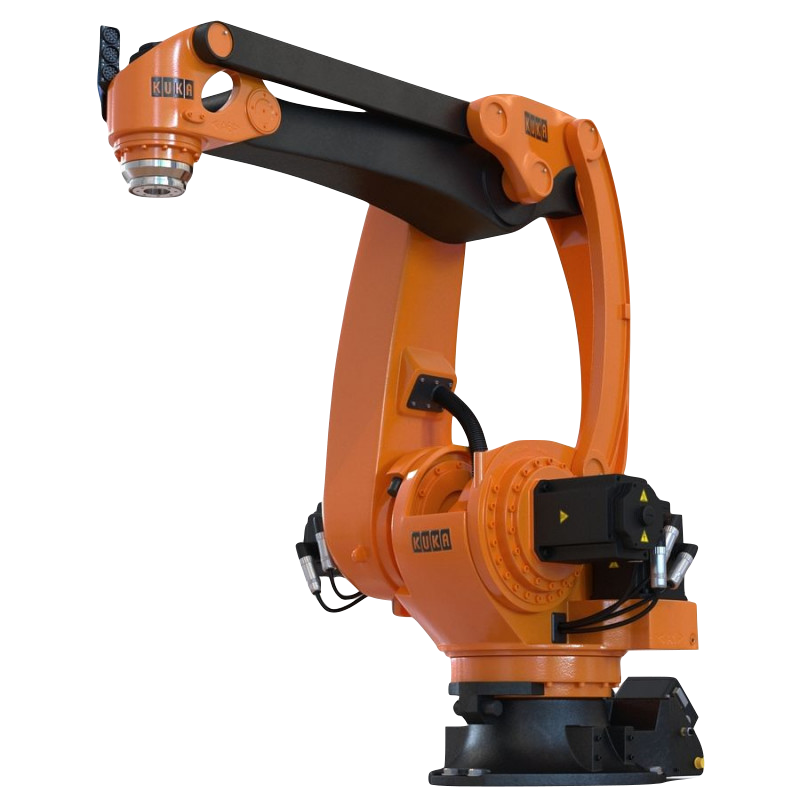

Palletizer KUKA KR 40 PA

KUKA KR 40 PA is an innovative 4-axis palletizing robot designed for fast and efficient palletizing. Thanks to its design and lightweight frame, the KR 40 PA stacks loads on pallets weighing up to 40 kg and up to 1800 mm high with the highest speed and unrivaled precision.

Features:

Speed and precision
Working range 2091 mm
High and continuous productivity
Space saving

Manufacturer

Reach: 2091 mm
Payload: 40 kg

Model: KR 40 PA
Axes: 4

Industries

Construction
Production of consumer goods

Solutions

Palletizing
Depalletizing

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	KUKA
Model	KR 40 PA
Country	Germany
Reach, mm	2091
Axes	4

Payload, kg	40
Repeatability mm, mm	± 0.25
Weight kg, kg	700
Mounting position	Floor
Controller	KUKA KR C2 Controller
Type	Articulated robot

Motion range, °
J1	310
J2	135
J3	160
J4	700
J5	-
J6	-

Maximum speed, °/s
J1	183
J2	153
J3	212
J4	374
J5	-
J6	-
