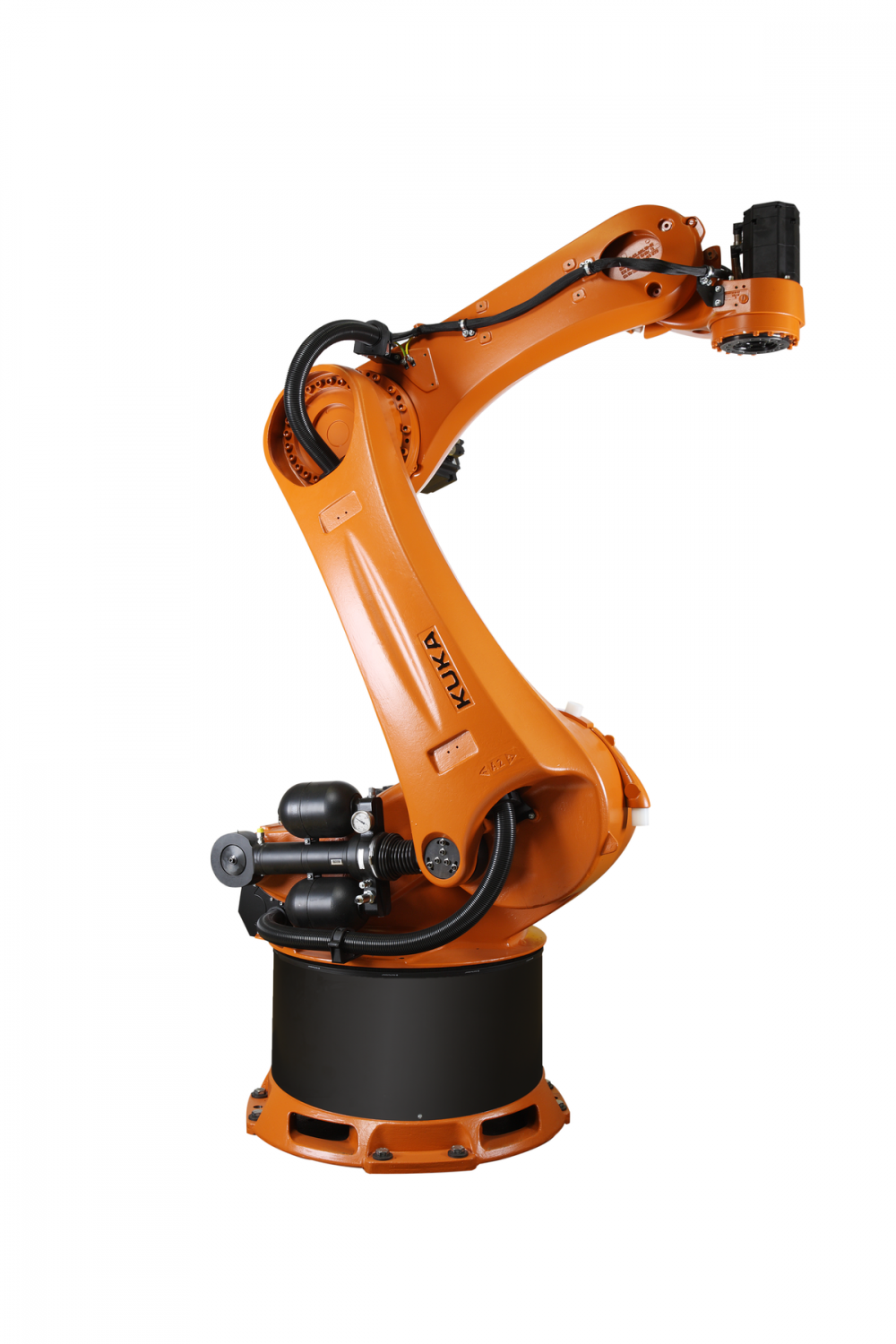

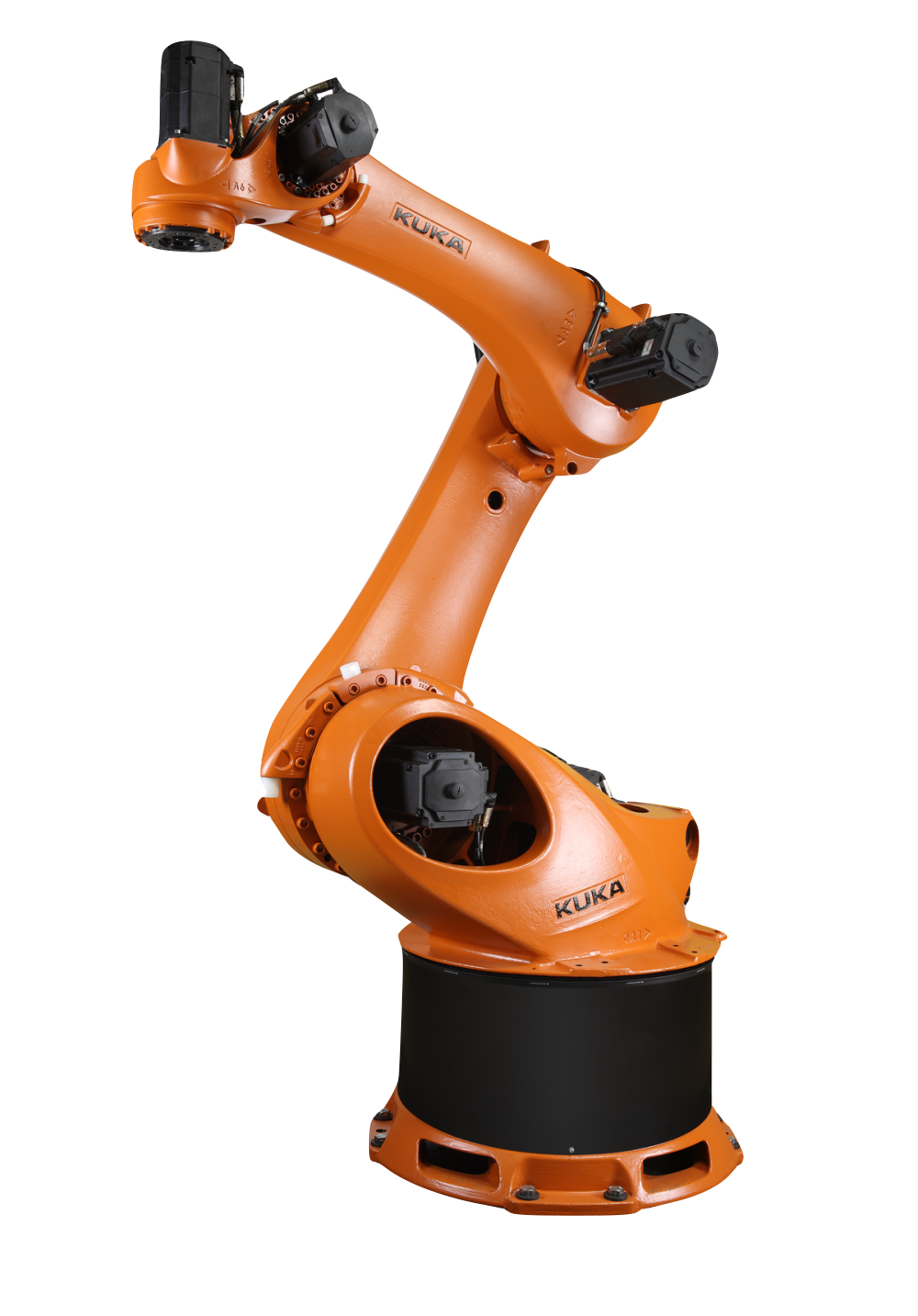

Palletizer KUKA KR 300-2 PA
KR 300-2 PA - industrial robot palletizer from KUKA with a robust and hollow design, which will allow you to easily move loads weighing up to 300 kg, quickly and accurately stack high pallets, reduce cycle time and your costs. The design of the 5-axis robot palletizer allows you to stack pallets to a height of up to 3195 mm.
Features:
High load capacity up to 300 kg
Large working range of 3195 mm
Accurate and non-stop palletizing
Hollow design
- Manufacturer
-
- Reach
- 3150 mm
- Payload
- 300 kg
- Model
- KR 300-2 PA
- Axes
- 5
- Industries
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 300-2 PA |
| Country | Germany |
| Reach, mm | 3150 |
| Axes | 5 |
| Payload, kg | 300 |
| Repeatability mm, mm | ± 0.08 |
| Mounting position | Floor |
| Controller | KUKA KR C4 Controller |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | ± 185 |
| J2 | - 130/20 |
| J3 | 0/155 |
| J4 | - |
| J5 | - |
| J6 | ± 350 |
| Maximum speed, °/s | |
|---|---|
| J1 | 98 |
| J2 | 91 |
| J3 | 89 |
| J4 | - |
| J5 | - |
| J6 | 177 |
