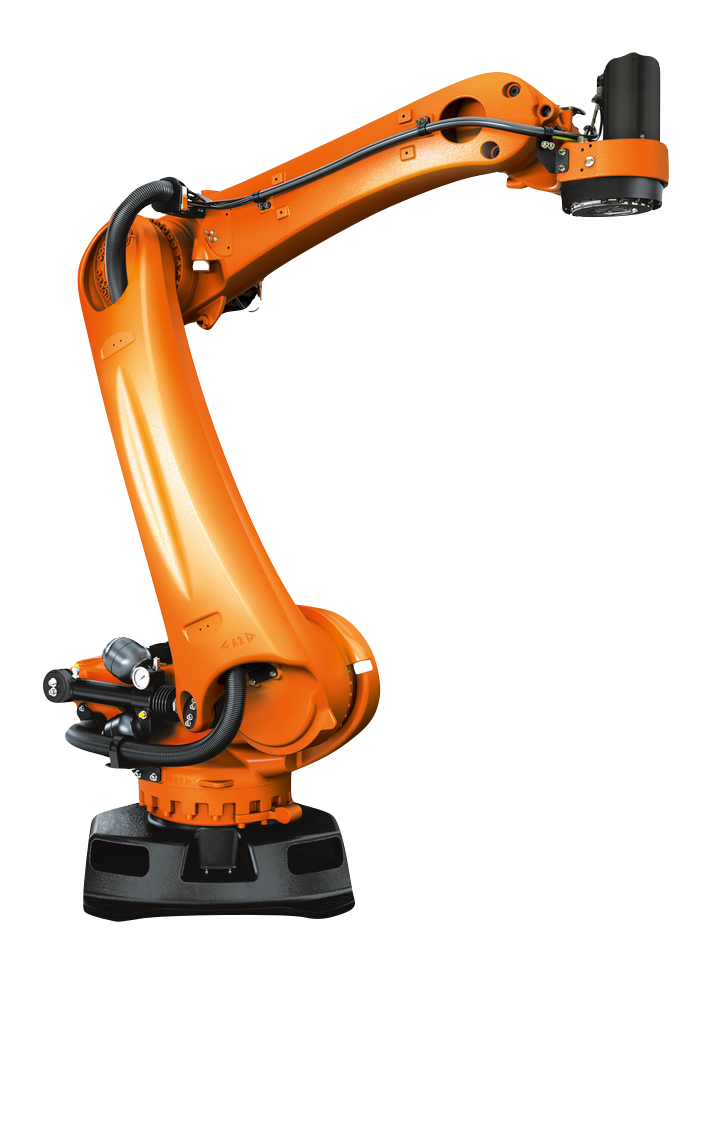

Palletizer KUKA KR 240 R3200 PA
KR 240 R3200 PA - industrial robot palletizer from KUKA KR QUANTEC PA series, which will allow you to easily move loads weighing up to 240 kg, quickly and accurately stack high pallets, reduce cycle time and your costs. The design of the 5-axis robot palletizer allows you to stack pallets to a height of up to 3195 mm.
Features:
High load capacity up to 240 kg
Large working range of 3195 mm
Accurate and non-stop palletizing
- Manufacturer
-
- Reach
- 3195 mm
- Payload
- 240 kg
- Model
- KR 240 R3200 PA
- Axes
- 5
- Industries
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 240 R3200 PA |
| Country | Germany |
| Reach, mm | 3195 |
| Axes | 5 |
| Payload, kg | 240 |
| Repeatability mm, mm | ± 0.06 |
| Weight kg, kg | 1103 |
| Mounting position | Floor |
| Controller | KUKA KR C4 Controller |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | ± 185 |
| J2 | - 140/-5 |
| J3 | 0/155 |
| J4 | - |
| J5 | - |
| J6 | ± 350 |
| Maximum speed, °/s | |
|---|---|
| J1 | 105 |
| J2 | 101 |
| J3 | 107 |
| J4 | - |
| J5 | 173 |
| J6 | 242 |
