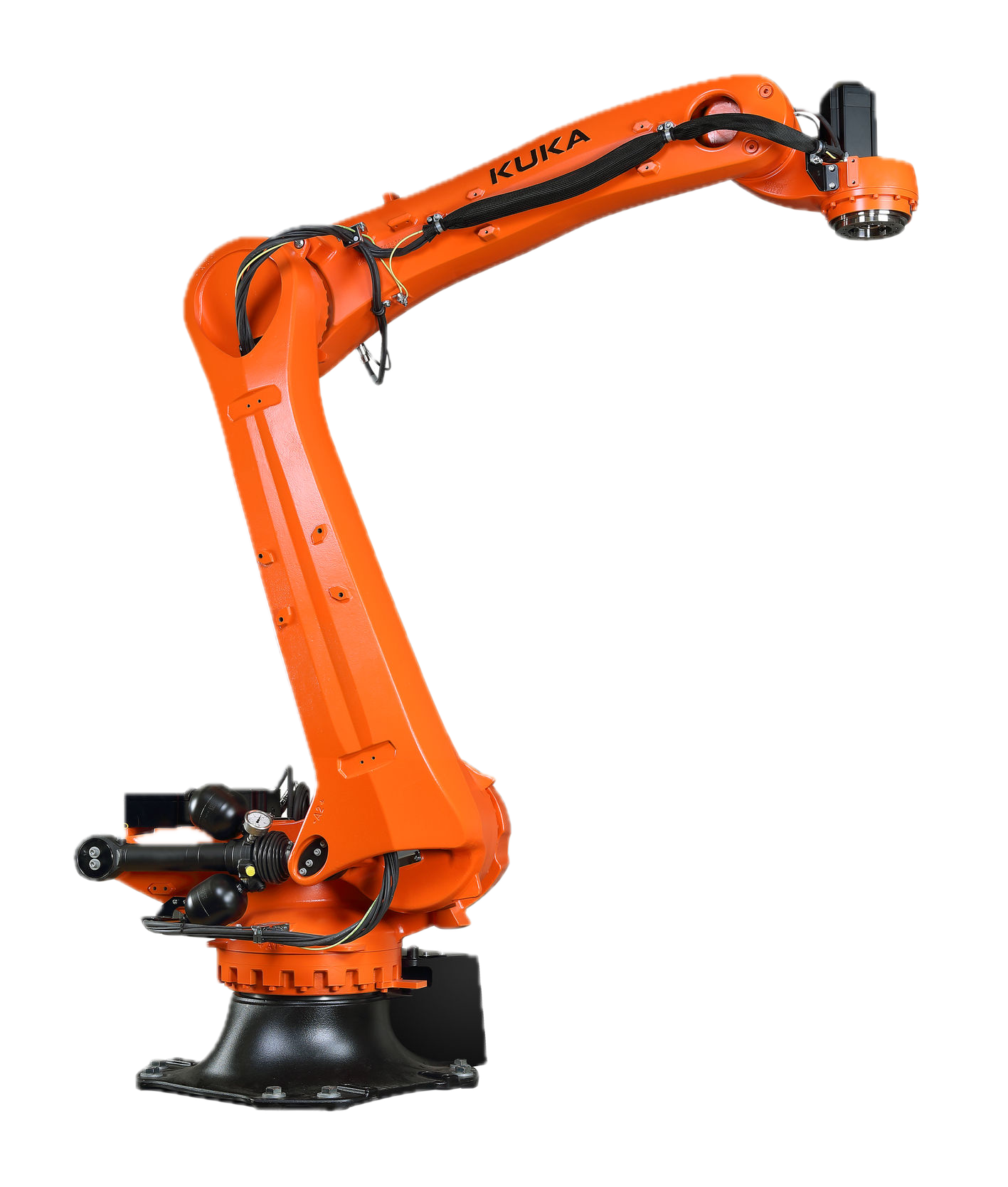

Palletizer KUKA KR 240 R3200-2 PA
The KR 240 R3200-2 PA is an updated version of the palletizing robot from KUKA's KR QUANTEC-2 PA series, featuring improved mechanical properties and an optimized design, making it more durable and efficient compared to the previous version. With the introduction of KUKA Energy Efficiency technology, the KR 240 R3200-2 PA boasts lower energy consumption and compatibility with the latest-generation KR C5 controllers.
Features:
High payload capacity up to 240 kg

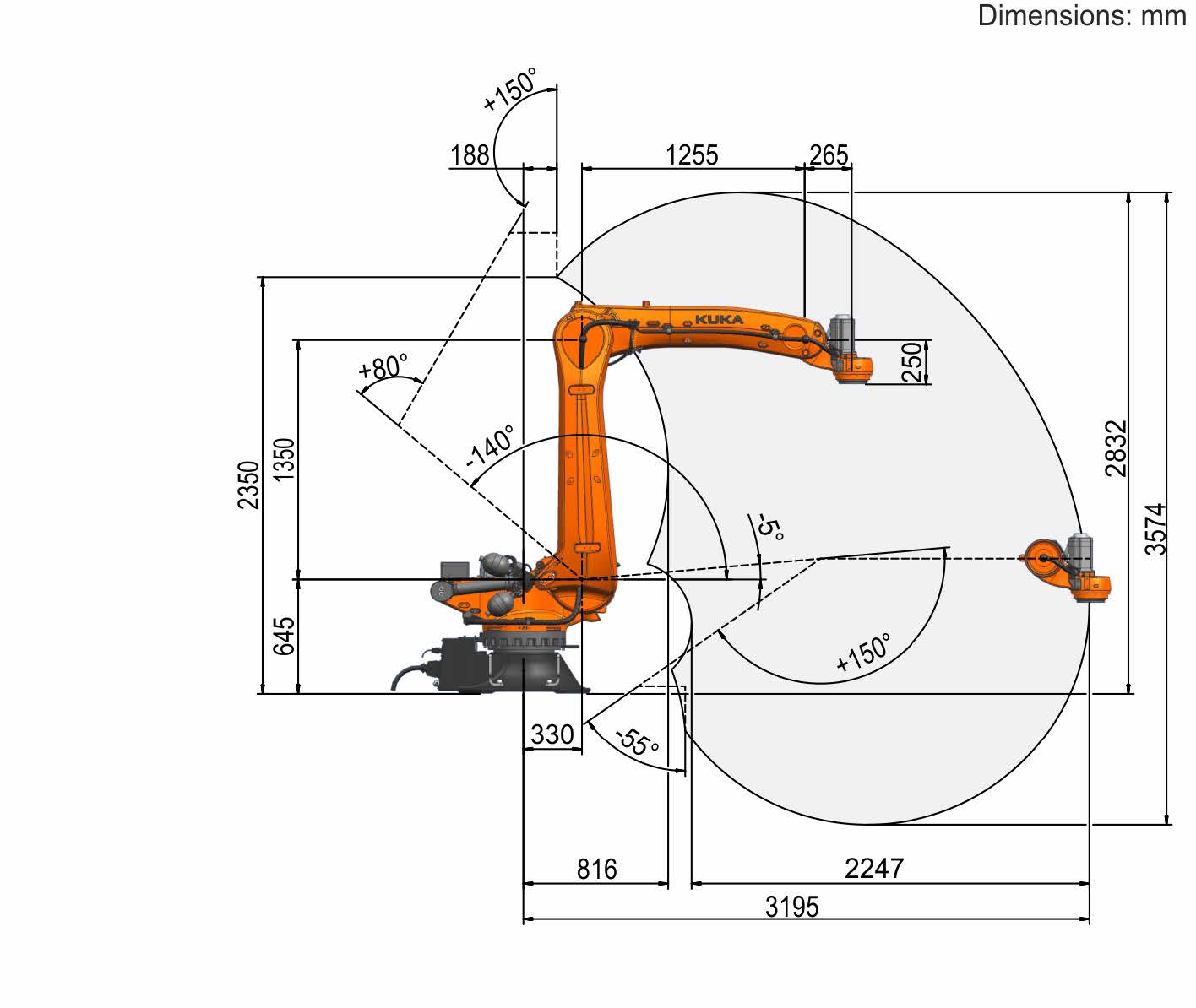

Large working range of 3195 mm
High speed and precision
- Manufacturer
-
- Reach
- 3195 mm
- Payload
- 240 kg
- Model
- KR 240 R3200-2 PA
- Axes
- 5
- Industries
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 240 R3200-2 PA |
| Country | Germany |
| Reach, mm | 3195 |
| Axes | 5 |
| Payload, kg | 240 |
| Repeatability mm, mm | ± 0.07 |
| Weight kg, kg | 1017 |
| Mounting position | Floor |
| Controller | KR C5; KR C4 |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| A1 | ± 185 |
| A2 | - 140/-5 |
| A3 | 0/+165 |
| A4 | - |
| A5 | - 55/150 |
| A6 | ± 350 |
| Maximum speed, °/s | |
|---|---|
| A1 | 137 |
| A2 | 111 |
| A3 | 119 |
| A4 | - |
| A5 | 225 |
| A6 | 321 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP65 |
| Protection rating, robot wrist (IEC 60529) | IP65 |
