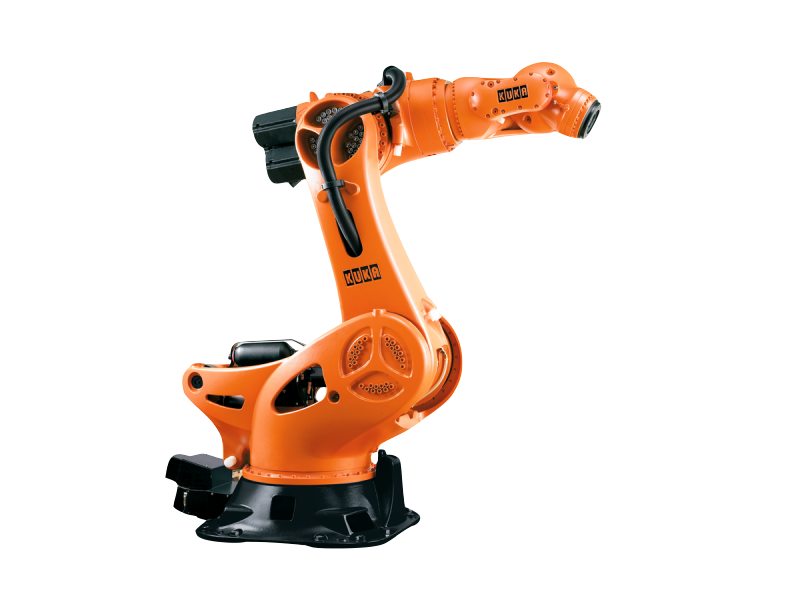

Palletizer KUKA KR 1000 L950 titan PA

KUKA KR 1000 L950 titan PA 6-axis industrial robot palletizer from KUKA series KR 1000 titan with the highest load capacity of 950 kg. KR 1000 L950 titan PA, is able to quickly and accurately stack pallets over 3 meters high.

Features:

Hollow design
3601 mm radius
High repeatability
Load capacity 950 kg

Manufacturer

Reach: 3601 mm
Payload: 950 kg

Model: KR 1000 L950 titan PA
Axes: 6

Industries

Construction
Heavy engineering
Logistics

Solutions

Palletizing
Depalletizing

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	KUKA
Model	KR 1000 L950 titan PA
Country	Germany
Reach, mm	3601
Axes	6

Payload, kg	950
Repeatability mm, mm	± 0.1
Mounting position	Floor
Controller	KUKA KR C4 Controller
Type	Articulated robot

Motion range, °
J1	± 150
J2	- 130/17,5
J3	- 62/145
J4	-
J5	± 118
J6	± 350

Maximum speed, °/s
J1	58
J2	58
J3	50
J4	-
J5	60
J6	72
