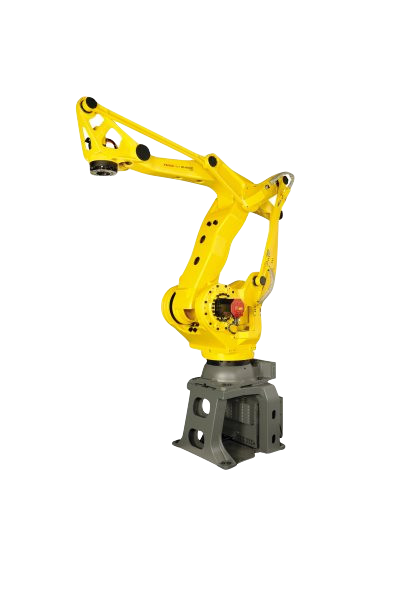

Palletizer FANUC M-410iC/500
FANUC M-410iC/500 is a high-speed 4-axis palletizing robot with a payload of 500 kg and a working range of 3143 mm. With its payload capacity and large working range, the M-410iC/500 is capable of picking pallets up to 2 meters high.
Features:
Large load capacity of 500 kg
Large working range of 3143 mm
Hollow design
High pallet assembly speed
- Manufacturer
-
- Reach
- 3143 mm
- Payload
- 500 kg
- Model
- M410iC/500
- Axes
- 4
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M410iC/500 |
| Reach, mm | 3143 |
| Axes | 4 |
| Payload, kg | 500 |
| Repeatability mm, mm | ± 0.5 |
| Weight kg, kg | 2490 (1910) |
| Controller | R-30iB |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 144 |
| J3 | 136 |
| J4 | 720 |
| J5 | - |
| J6 | - |
| Maximum speed, °/s | |
|---|---|
| J1 | 85 |
| J2 | 85 |
| J3 | 85 |
| J4 | 200 |
| J5 | - |
| J6 | - |
