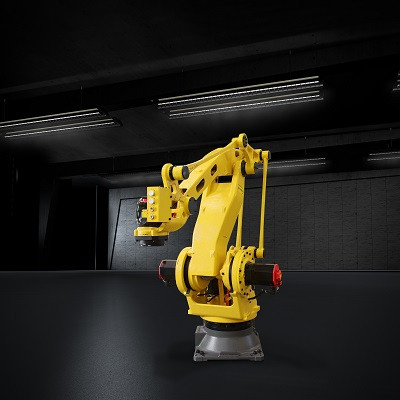

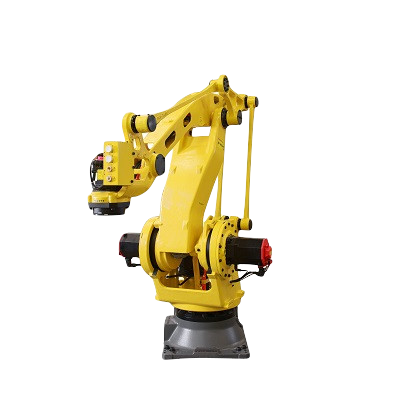

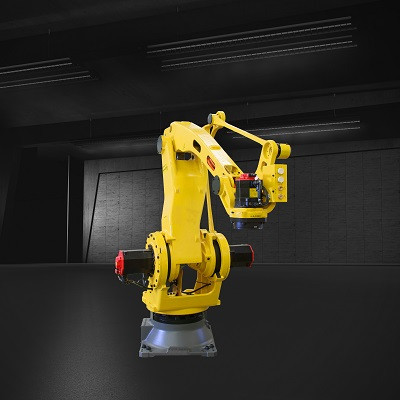

Palletizer FANUC M-410iC/110
FANUC M-410iC/110 is a high-speed 4-axis palletizing robot with a payload of 110 kg and a working range of 2403 mm. With its payload capacity and large working range, the M-410iC/110 is capable of picking pallets up to 2 meters high.
Features:
Large load capacity of 110 kg
Large working range of 2403 mm
Hollow design
Productivity - 2200 cycles per hour
High pallet assembly speed
- Manufacturer
-
- Reach
- 2403 mm
- Payload
- 110 kg
- Model
- M-410iC/110
- Axes
- 4
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-410iC/110 |
| Reach, mm | 2403 |
| Axes | 4 |
| Payload, kg | 110 |
| Repeatability mm, mm | ± 0.5 |
| Weight kg, kg | 1030 |
| Controller | R-30iB Plus |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 125 |
| J3 | 140 |
| J4 | 720 |
| J5 | - |
| J6 | - |
| Maximum speed, °/s | |
|---|---|
| J1 | 145 |
| J2 | 130 |
| J3 | 140 |
| J4 | 420 |
| J5 | - |
| J6 | - |
