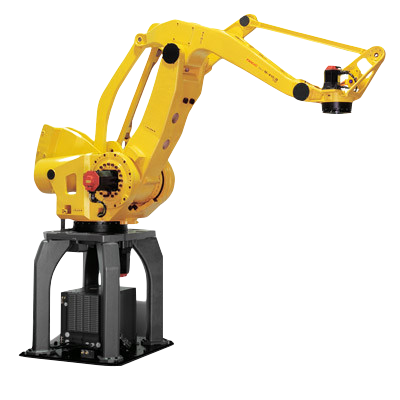

Palletizer FANUC M-410iB/700
FANUC M-410iB/700 is a high-speed 4-axis palletizing robot with a payload of 700 kg and a working range of 3143 mm. With its payload capacity and large working range, the M-410iC/700 is capable of picking pallets up to 2 meters high.
Features:
Large load capacity of 700 kg
Large working range of 3143 mm
Hollow design
High pallet assembly speed
- Manufacturer
-
- Reach
- 3141 mm
- Payload
- 700 kg
- Model
- M-410iB/700
- Axes
- 4
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-410iB/700 |
| Reach, mm | 3141 |
| Axes | 4 |
| Payload, kg | 700 |
| Repeatability mm, mm | ± 0.5 |
| Weight kg, kg | 2700 |
| Controller | R-30iB |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 144 |
| J3 | 136 |
| J4 | 540 |
| J5 | - |
| J6 | - |
| Maximum speed, °/s | |
|---|---|
| J1 | 60 |
| J2 | 60 |
| J3 | 60 |
| J4 | 120 |
| J5 | - |
| J6 | - |
