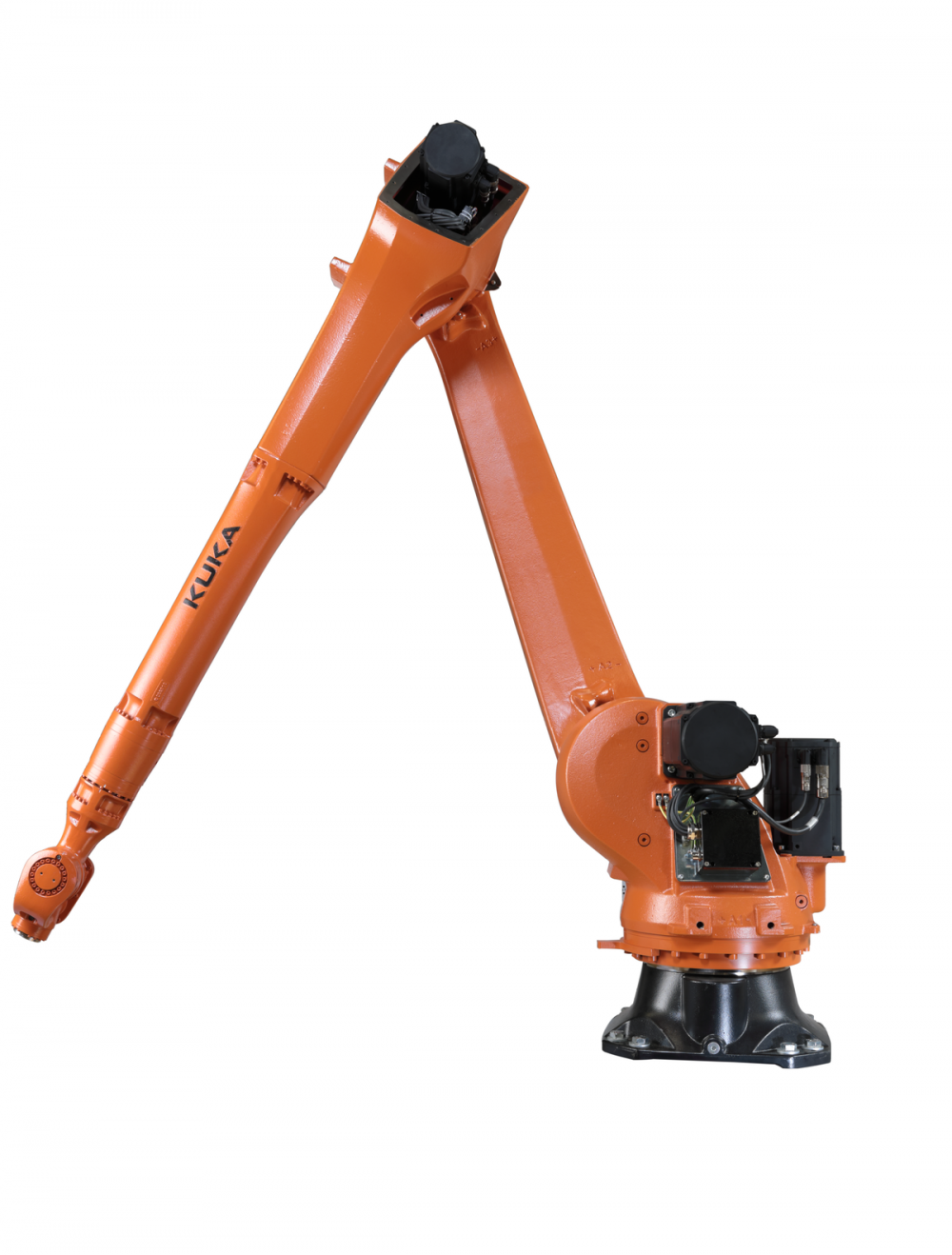

Industrial robot KUKA KR 20 R3100 KR IONTEC
- Manufacturer
-
- Reach
- 3100 mm
- Payload
- 20 kg
- Model
- KR 20 R3100
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 20 R3100 |
| Reach, mm | 3100 |
| Axes | 6 |
| Payload, kg | 20 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 549 |
| Controller | KUKA KR C4 Controller |
| Motion range, ° | |
|---|---|
| J1 | ±185 |
| J2 | -175/60 |
| J3 | -120/170 |
| J4 | ±350 |
| J5 | ±350 |
| J6 | ±350 |
| Maximum speed, °/s | |
|---|---|
| J1 | 180 |
| J2 | 165 |
| J3 | 160 |
| J4 | 360 |
| J5 | 360 |
| J6 | 630 |
