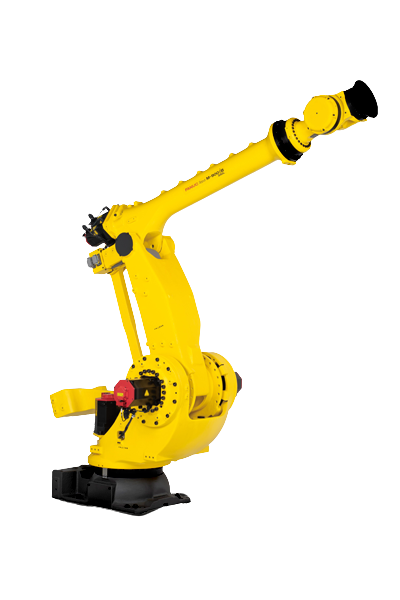

Industrial Robot FANUC M-900iB/330L

This long arm model features a compact mechanical structure that ensures an optimal weight-to-payload ratio. The large working range with a horizontal reach of 3203 mm and a vertical reach of 3539 mm makes it the ideal solution for heavy-duty spot welding and material handling applications such as stacking. The inherent rigidity and high payload qualify the robot for operations requiring higher levels of rigidity.

Features:

  • High precision

  • Load capacity 330 kg

  • Working range 3203 mm

Manufacturer
fanuc-logo
Reach
3203 mm
Payload
330 kg
Model
M-900iB/330L
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Fanuc
Model M-900iB/330L
Country Japan
Reach, mm 3203
Axes 6
Payload, kg 330
Repeatability mm, mm ± 0.1
Weight kg, kg 1780
Controller R-30iB Plus
Motion range, °
J1 370
J2 151
J3 164
J4 720
J5 250
J6 720
Maximum speed, °/s
J1 110
J2 85
J3 85
J4 90
J5 85
J6 165
Protection
body IP54
wrist & J3 arm IP67
