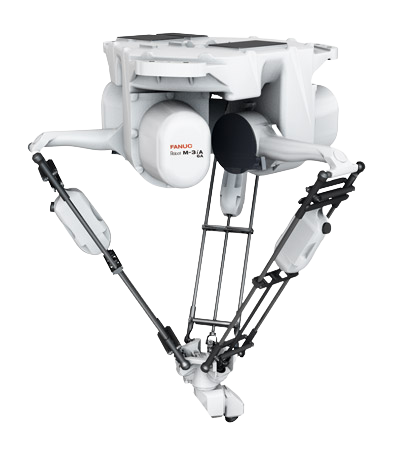

Industrial Robot FANUC M-3iA/6A

This high-speed 6-axis robot is ideal for picking, packing and assembly. Its 3-axis wrist allows for free rotation of workpieces and tools as required for assembly applications. The intelligent design makes the best use of available workspace.

Features:

High precision
Load capacity 6 kg
Working range 1350 mm

Manufacturer

Reach: 1350 mm
Payload: 6 kg

Model: M-3iA/6A
Axes: 6

Industries

Food industry
Production of consumer goods

Solutions

Packaging
Assembly
Pick & Place

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	M-3iA/6A
Country	Japan
Reach, mm	1350
Axes	6

Payload, kg	6
Repeatability mm, mm	± 0.1
Weight kg, kg	175
Controller	R-30iB Plus
Type	Delta

Motion range, °
J1	Ø 1350 x 500*3
J2	Ø 1350 x 500*3
J3	Ø 1350 x 500*3
J4	720
J5	300
J6	720

Maximum speed, °/s
J4	4000
J5	2000
J6	2000

Protection
body	IP67
wrist & J3 arm	IP67
