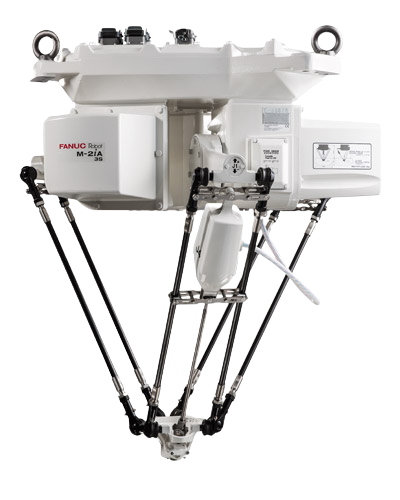

Industrial Robot FANUC M-2iA/3S
The ultra-compact M-2 series is at the forefront of high-speed small parts handling. With up to 6 axes, this high-speed assembly robot series offers unlimited flexibility thanks to extremely variable mounting positions and human-hand-like flexibility. Capable of reaching very high speeds, this 4-axis hollow-wrist delta speed robot offers a large working range to increase your productivity with payloads up to 3 kg.
Features:
High precision
High speed
Load capacity 3 kg
Working range 800 mm
- Manufacturer
-
- Reach
- 800 mm
- Payload
- 3 kg
- Model
- M-2iA/3S
- Axes
- 4
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-2iA/3S |
| Country | Japan |
| Reach, mm | 800 |
| Axes | 4 |
| Payload, kg | 3 |
| Repeatability mm, mm | ± 0.1 |
| Weight kg, kg | 120 |
| Controller | R-30iB Plus |
| Type | Delta |
| Motion range, ° | |
|---|---|
| J1 | Ø 800 x 300*3 |
| J2 | Ø 800 x 300*3 |
| J3 | Ø 800 x 300*3 |
| J4 | 720 |
| Maximum speed, °/s | |
|---|---|
| J4 | 3500 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP69K |
