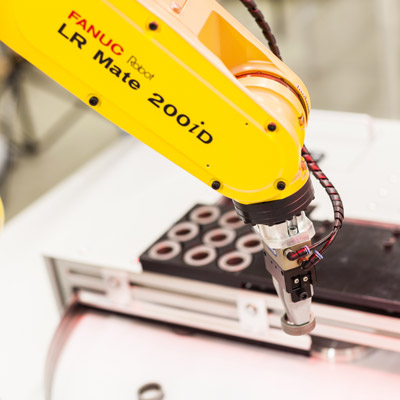

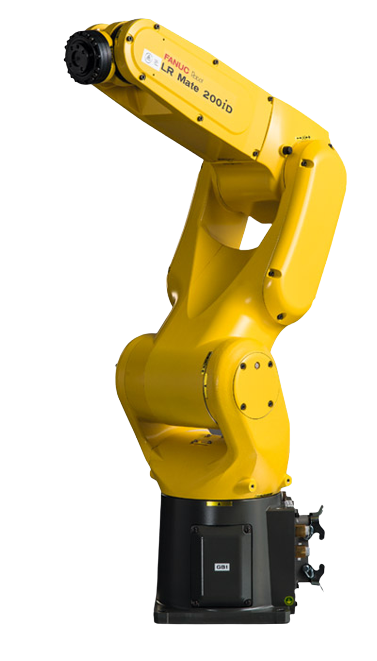

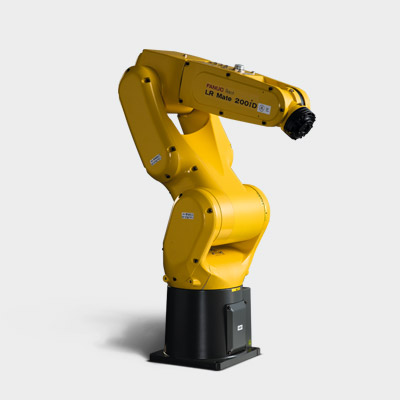

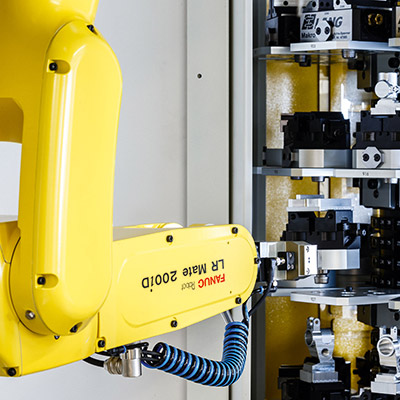

Industrial Robot FANUC LR Mate 200iD
FANUC LRMate 200iD is a compact industrial robot with a reach and size comparable to a human hand. This helps minimize interference with peripheral devices and allows for operation in confined spaces, while multiple mounting options provide installation and integration flexibility.
- The lightest robot in its class
- High repeatability
- Ability to work in confined spaces
- Manufacturer
-
- Reach
- 717 mm
- Payload
- 7 kg
- Model
- LR Mate 200iD
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | LR Mate 200iD |
| Country | Japan |
| Reach, mm | 717 |
| Axes | 6 |
| Payload, kg | 7 |
| Repeatability mm, mm | ± 0.01 |
| Weight kg, kg | 25 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 245 |
| J3 | 420 |
| J4 | 380 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 450 |
| J2 | 380 |
| J3 | 520 |
| J4 | 550 |
| J5 | 545 |
| J6 | 1000 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
