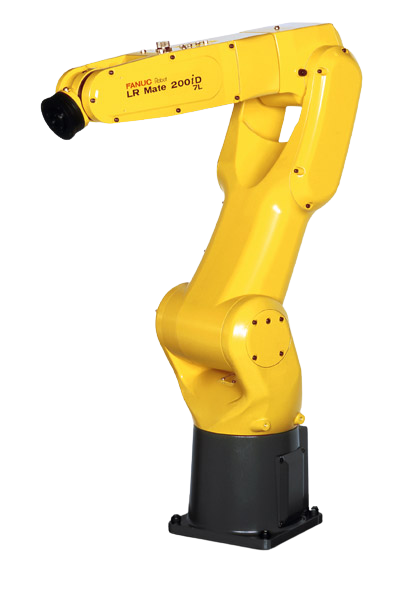

Industrial Robot FANUC LR Mate 200iD/7L

Quickly handling small payloads, this compact multi-purpose industrial robot offers enhanced accessibility. Like all LR Mate robots, it is also available with a range of options including integrated intelligence (vision & power), special application packages and IP67 protection.

Features:

Large reach of 717 mm
High repeatability
Load capacity of 7 kg
Compact and lightweight
Ability to operate in confined spaces

Manufacturer

Reach: 911 mm
Payload: 7 kg

Model: LR Mate 200iD/7L
Axes: 6

Industries

Production of consumer goods

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	LR Mate 200iD/7L
Country	Japan
Reach, mm	911
Axes	6

Payload, kg	7
Repeatability mm, mm	± 0.01
Weight kg, kg	27
Controller	R-30iB Plus
Type	Articulated robot

Motion range, °
J1	360
J2	245
J3	430
J4	380
J5	250
J6	720

Maximum speed, °/s
J1	370
J2	310
J3	410
J4	550
J5	545
J6	1000

Protection
body	IP67
wrist & J3 arm	IP67
