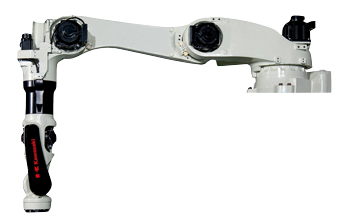

Welding Robot Kawasaki BT200L
Kawasaki BT200L is a 6-axis industrial robot with a large working radius and ceiling mounting. The BT200L is capable of manipulating objects up to 200 kilograms at a distance of up to 3 meters, making it an ideal solution for spot welding and material handling.
Features of BT200L:
Hollow wrist
Ceiling mounting
High precision and speed
Large working area
- Manufacturer
-
- Reach
- 315 mm
- Payload
- 200 kg
- Model
- BT200L
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | Kawasaki |
| Model | BT200L |
| Country | Japan |
| Reach, mm | 315 |
| Axes | 6 |
| Payload, kg | 200 |
| Repeatability mm, mm | ± 0.08 |
| Weight kg, kg | 1100 |
| Mounting position | Ceiling |
| Controller | E02 |
| Type | Articulated robot |

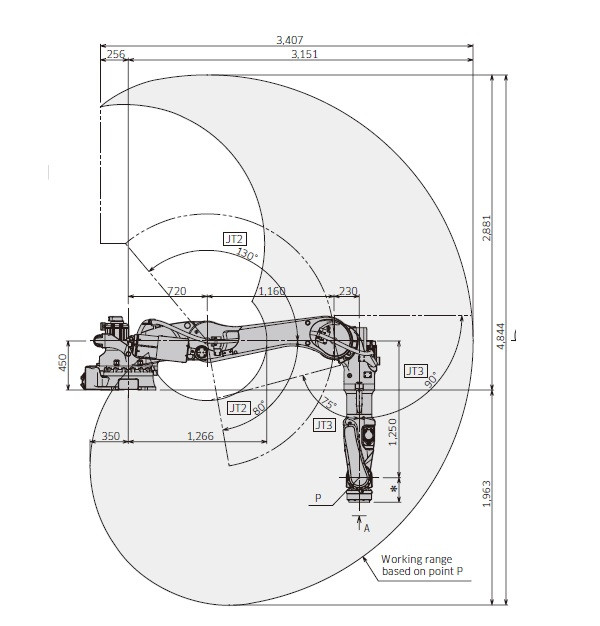

| Motion range, ° | |
|---|---|
| J1 | ± 160 |
| J2 | + 80/-130 |
| J3 | +90/-75 |
| J4 | ± 210 |
| J5 | ± 125 |
| J6 | ± 210 |
| Maximum speed, °/s | |
|---|---|
| J1 | 105 |
| J2 | 85 |
| J3 | 100 |
| J4 | 120 |
| J5 | 120 |
| J6 | 200 |
