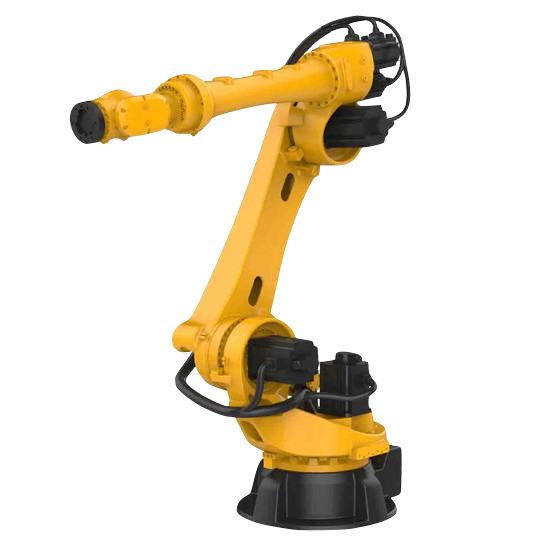

Palletizer TURIN AIR165-A

The TURIN AIR165-A universal industrial robot is ideal for handling large items due to its high load capacity of 165 kg, large size, working range of 2750 mm, and the ability to install various grippers.

Features

Speed and precision
Large operating radius of 2750 mm
Hollow structure
High load capacity of 165 kg

Manufacturer

Reach: 2750 mm
Payload: 165 kg

Model: AIR165-A
Axes: 6

Solutions

Palletizing
Assembly
Packaging
Pick & Place

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	TURIN
Model	AIR165-A
Country	China
Reach, mm	2750
Axes	6

Payload, kg	165
Repeatability mm, mm	± 0.1
Weight kg, kg	1200
Mounting position	Floor
Controller	TRC3C-B06
Type	Articulated robot

Motion range, °
J1	±170
J2	-60/85
J3	-120/155
J4	±360
J5	±125
J6	±360

Maximum speed, °/s
J1	125
J2	113
J3	125
J4	180
J5	175
J6	280
