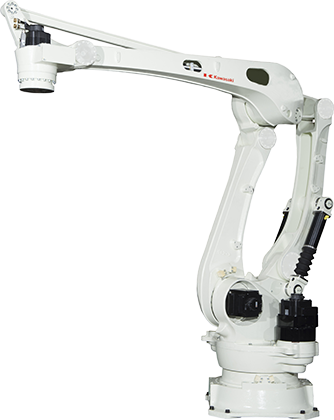

Palletizer Kawasaki CP180L
CP180L - 4-axis industrial robot palletizer from Kawasaki with one of the best cycle times, wide range of movement, 180 kg load capacity, compact and energy-saving controller and simple and clear control. CP180L will provide reliability and high speed and accuracy of pallet assembly and will help to increase the efficiency of production lines.
Features:
High speed and positioning accuracy
Working range 3255 mm
Load capacity 180 kg
- Manufacturer
-
- Reach
- 3255 mm
- Payload
- 180 kg
- Model
- CP180L
- Axes
- 4
- Industries
- Solutions
Specifications
| Manufacturer | Kawasaki |
| Model | CP180L |
| Reach, mm | 3255 |
| Axes | 4 |
| Payload, kg | 180 |
| Repeatability mm, mm | ± 0.5 |
| Weight kg, kg | 1600 |
| Controller | E03 |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | ± 160 |
| J2 | + 95/-46 |
| J3 | + 15/-110 |
| J4 | ± 360 |
| Maximum speed, °/s | |
|---|---|
| J1 | 140 |
| J2 | 125 |
| J3 | 130 |
| J4 | 400 |
