Industrial robot KUKA KR 800 R2800-2 F
KR 360 R2830 is a universal and ultra-precise 6-axis industrial robot from KUKA of the KR 360 FORTEC series. KR 360 R2830 is capable of handling loads up to 360 kg in a working range of 2826 mm. The robot is suitable for a wide range of tasks from welding to palletizing and assembly.
KR 360 R2830 has different versions:
- KR 360 R2830 F - for foundries
- KR 360 R2830 C - for ceiling mounting
- KR 360 R2830 C-F - for foundries and ceiling mounting
Features:
Hollow design
Reach 2826 mm
High repeatability
Load capacity 360 kg
- Manufacturer
-
- Reach
- 2800 mm
- Payload
- 800 kg
- Model
- KR 800 R2800-2 F
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 800 R2800-2 F |
| Country | Germany |
| Reach, mm | 2800 |
| Axes | 6 |
| Payload, kg | 800 |
| Repeatability mm, mm | ± 0.08 |
| Weight kg, kg | 2400 |
| Controller | KR C5; KR C4 |
| Type | Articulated |

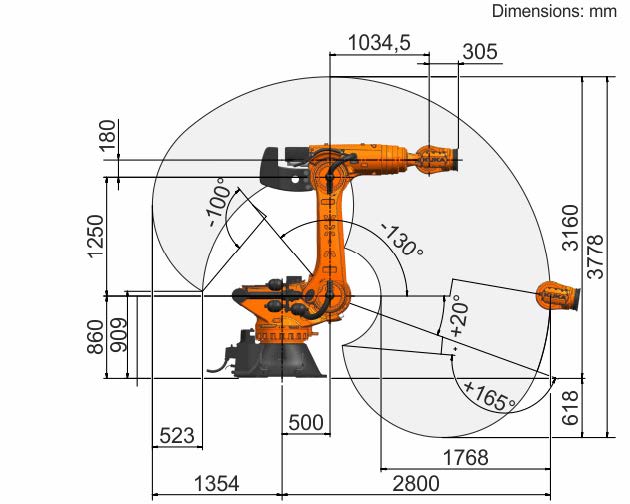

| Motion range, ° | |
|---|---|
| A1 | ± 185 |
| A2 | - 130/20 |
| A3 | - 100/165 |
| A4 | ± 350 |
| A5 | ± 120 |
| A6 | ± 350 |
| Maximum speed, °/s | |
|---|---|
| A1 | 80 |
| A2 | 60 |
| A3 | 60 |
| A4 | 90 |
| A5 | 80 |
| A6 | 130 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP65/IP67 |
| Protection rating, robot wrist (IEC 60529) | IP65/IP67 |
