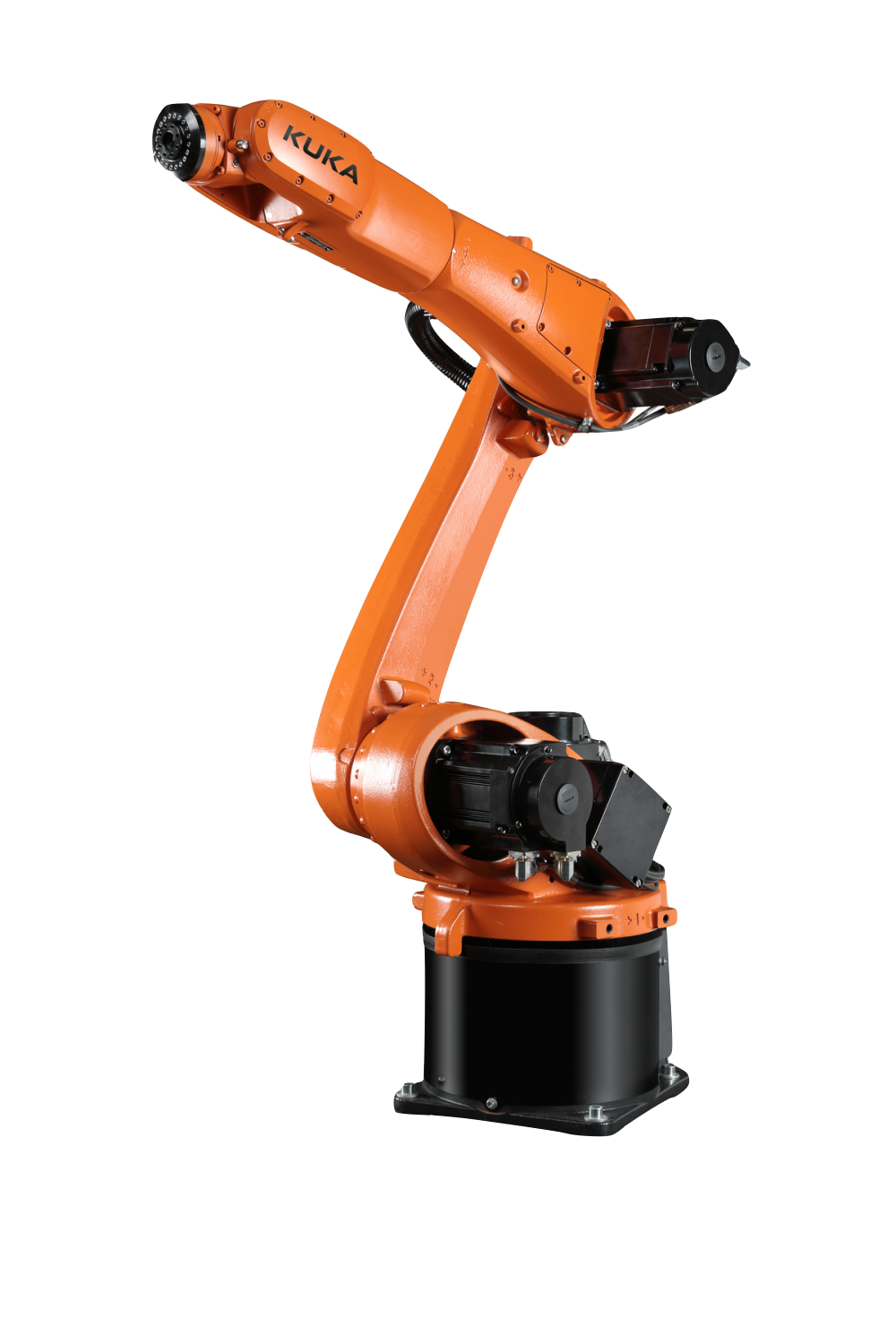

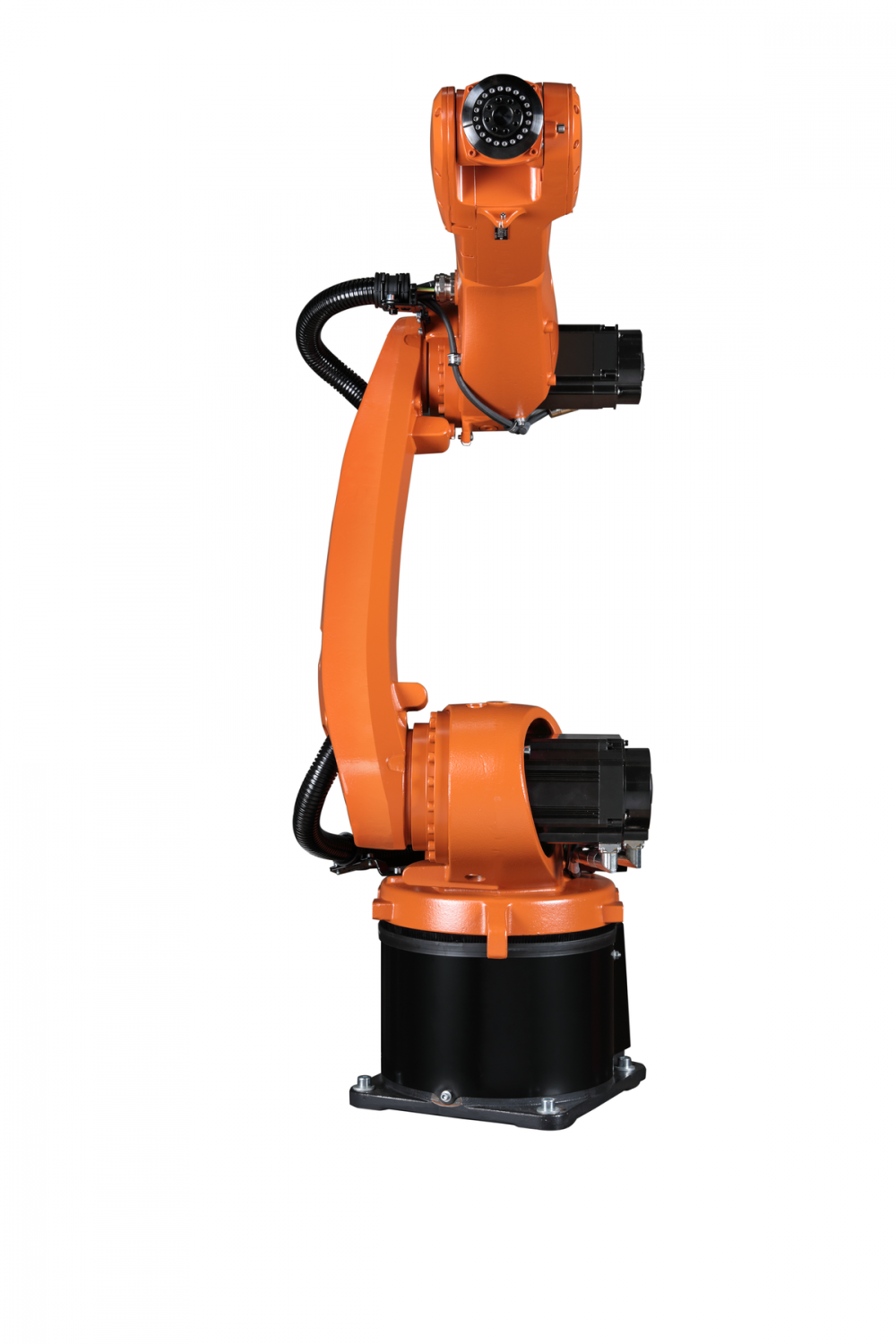

Industrial robot KUKA KR 8 R1640-2

KR 8 R1640-2 is a universal 6-axis industrial robot with a compact and hollow design from the KUKA KR CYBERTECH nano series, capable of providing maximum productivity due to high speed and positioning accuracy. KR 8 R1640-2 is ideal for work in limited spaces, for tasks requiring handling of loads up to 8 kg, assembly, packaging and welding.

Features:

Hollow and compact design
Large radius of action 1640 mm
Various mounting options
Possibility to work in limited spaces

Manufacturer

Reach: 1640 mm
Payload: 8 kg

Model: KR 8 R1640-2
Axes: 6

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	KUKA
Model	KR 8 R1640-2
Reach, mm	1640
Axes	6

Payload, kg	8
Repeatability mm, mm	± 0.04
Weight kg, kg	255
Controller	KUKA KR C4 Controller

Motion range, °
J1	±170
J2	-185/65
J3	-137/163
J4	±185
J5	±120
J6	±350

Maximum speed, °/s
J1	220
J2	215
J3	270
J4	381
J5	311
J6	472
