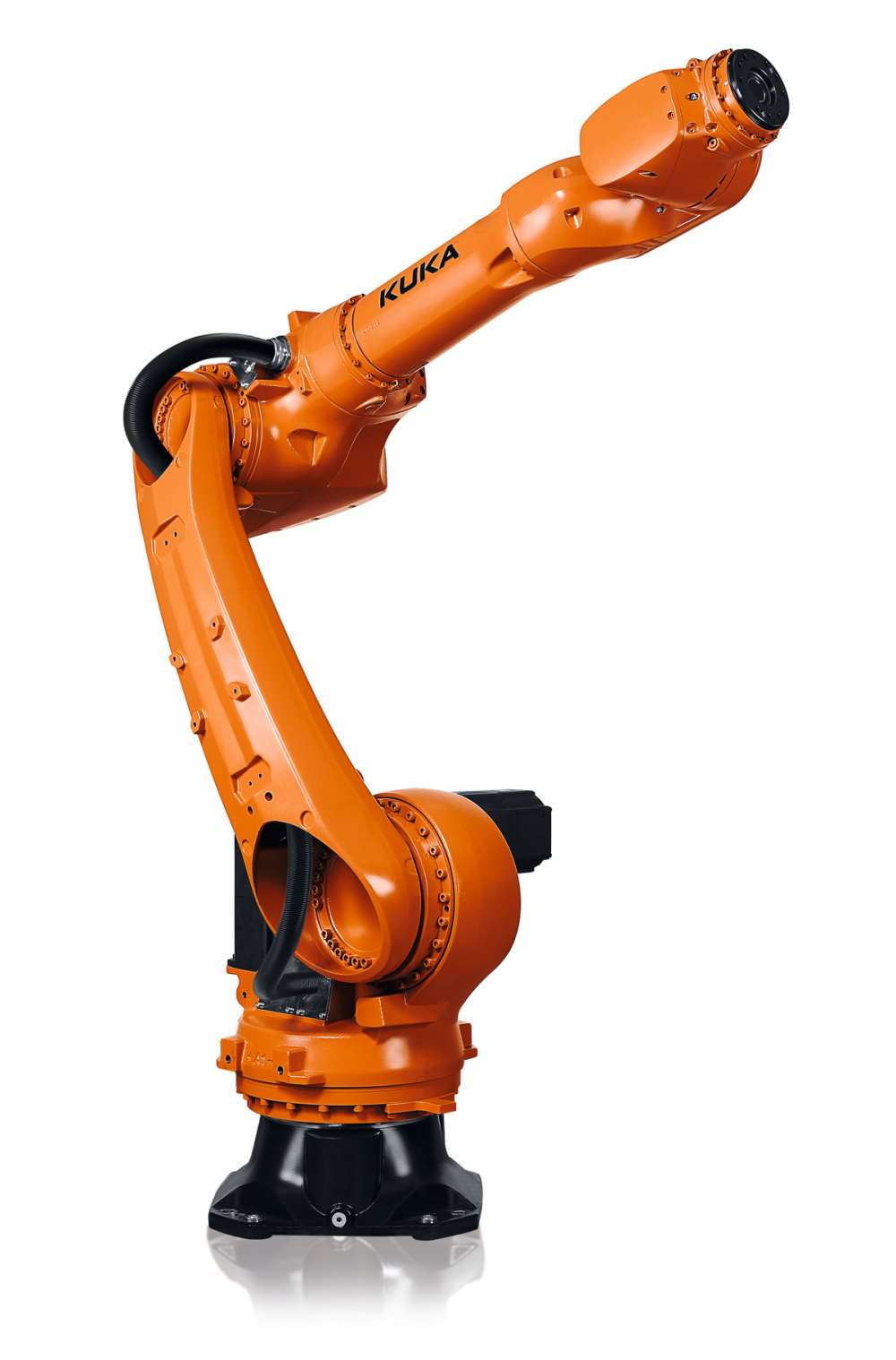

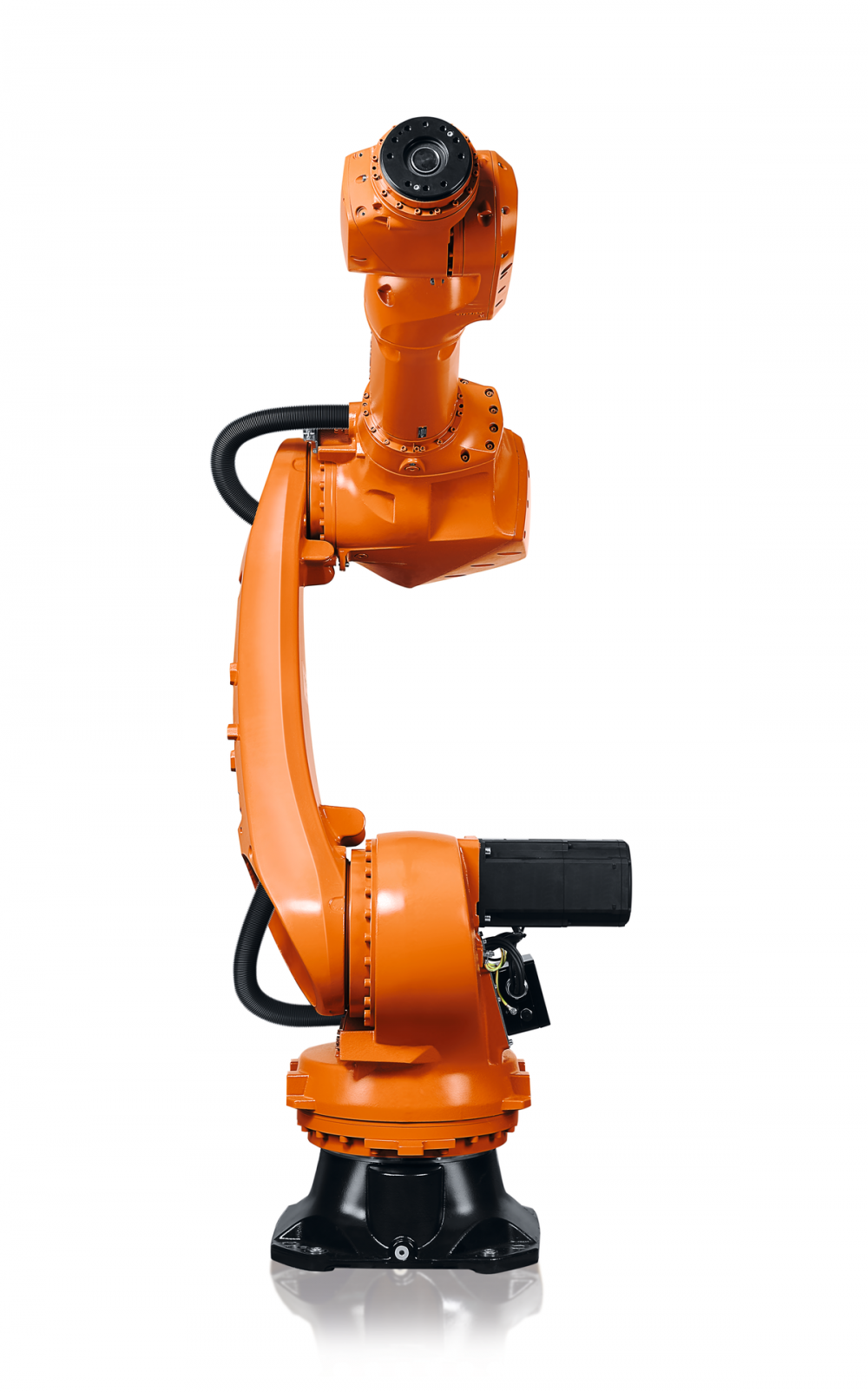

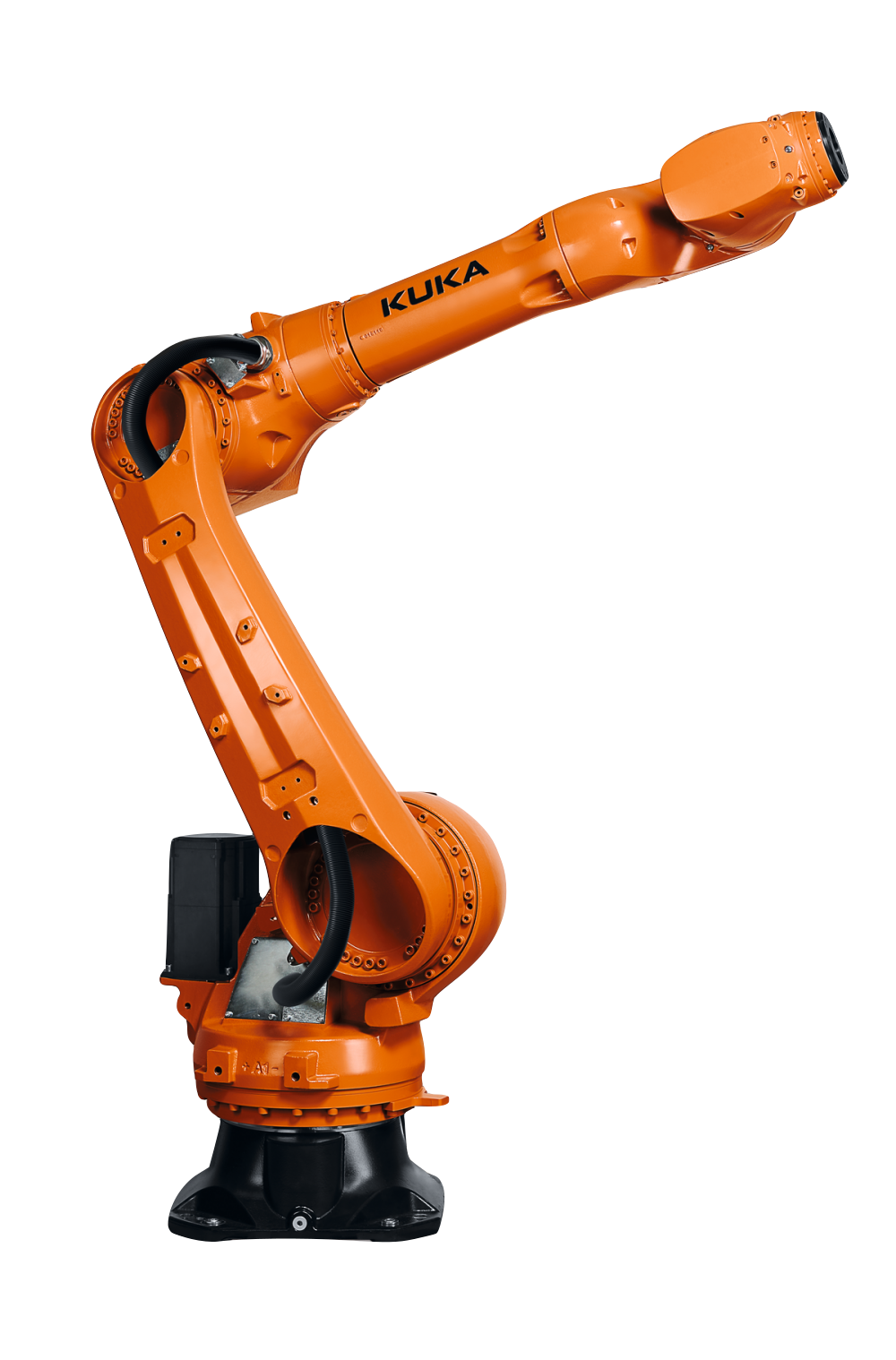

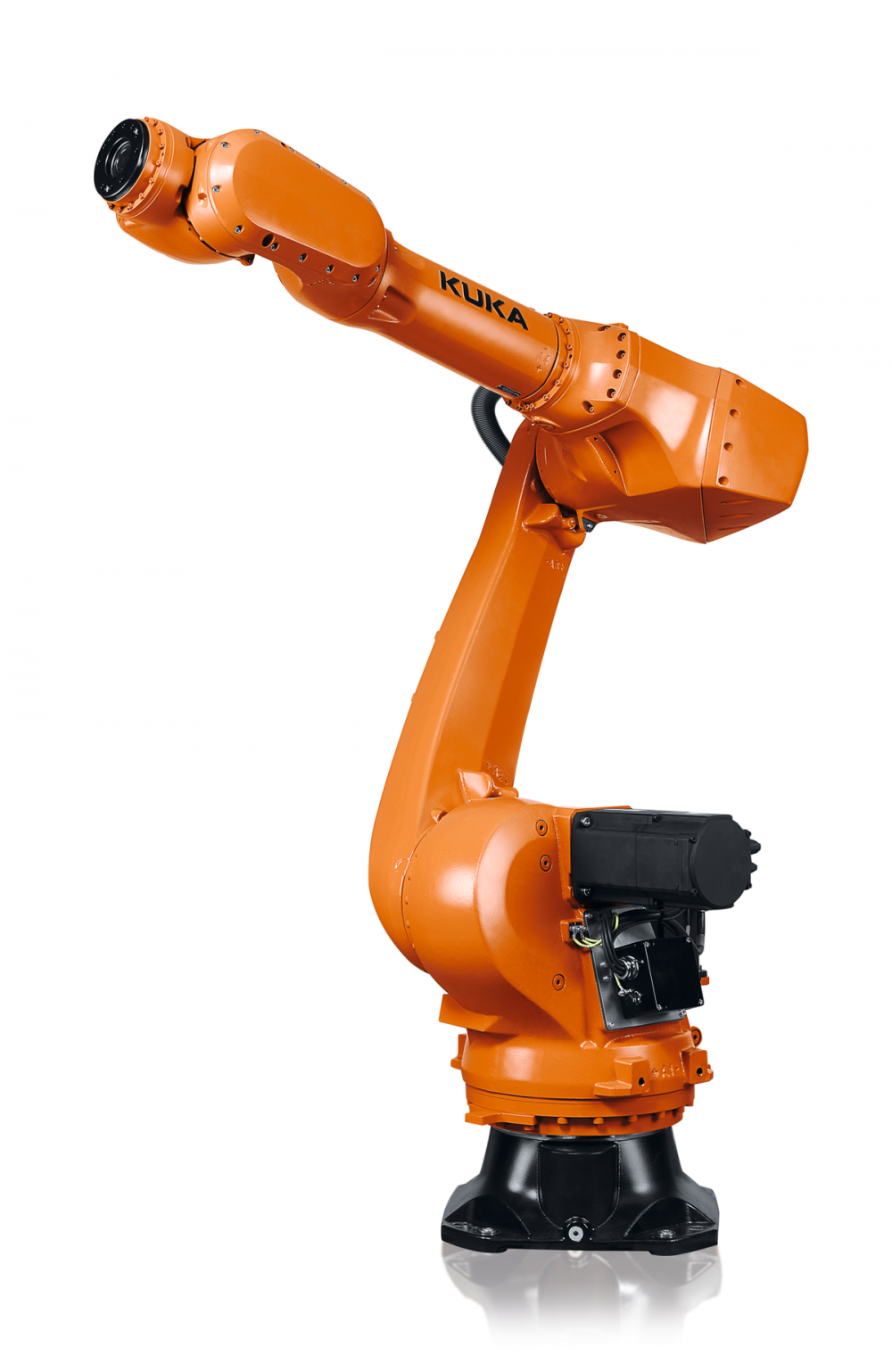

Industrial robot KUKA KR 50 R2500

KR 50 R2500 - 6-axis universal industrial robot with long arm from KUKA from the KR IONTEC series, capable of providing maximum productivity and optimal use of the working space, thanks to its compact and hollow design. KR 50 R2500 is ideal for handling loads up to 50 kg, assembly, packaging and palletizing.

Features:

Hollow and compact design
Large radius of action 2500 mm
Various mounting options
Possibility to work in limited spaces

Manufacturer

Reach: 2500 mm
Payload: 50 kg

Model: KR 50 R2500
Axes: 6

Solutions

Assembly
Packaging
Palletizing
Pick & Place
Bending

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	KUKA
Model	KR 50 R2500
Reach, mm	2500
Axes	6

Payload, kg	50
Repeatability mm, mm	± 0.05
Weight kg, kg	559
Controller	KUKA KR C4 Controller

Motion range, °
J1	±185
J2	-175/60
J3	-120/170
J4	±180
J5	±125
J6	±350

Maximum speed, °/s
J1	175
J2	158
J3	175
J4	250
J5	250
J6	360
