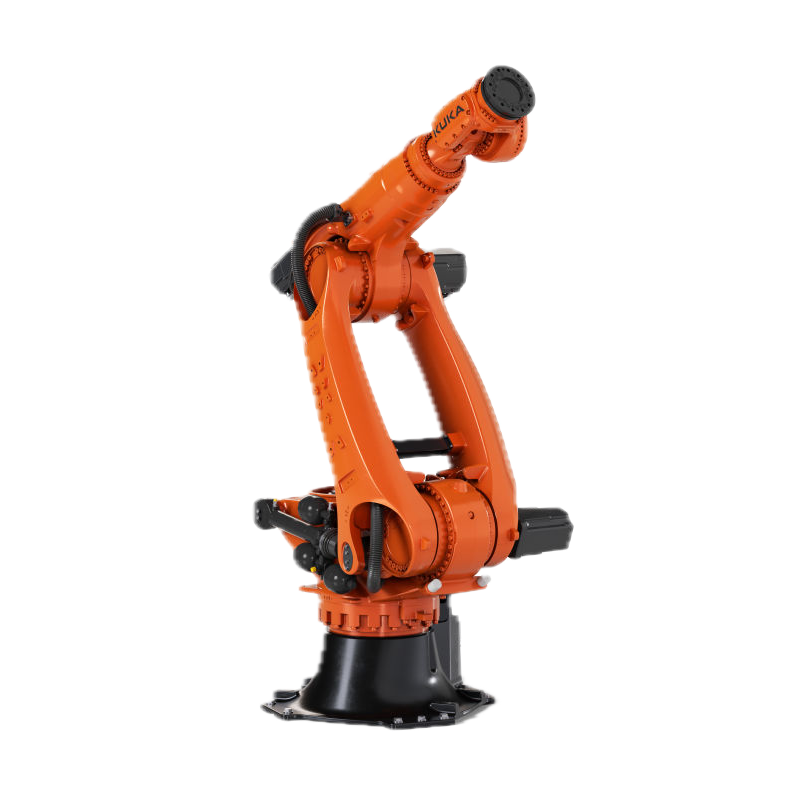

Industrial robot KUKA KR 480 R3700-2

KR 360 R2830 is a universal and ultra-precise 6-axis industrial robot from KUKA of the KR 360 FORTEC series. KR 360 R2830 is capable of handling loads up to 360 kg in a working range of 2826 mm. The robot is suitable for a wide range of tasks from welding to palletizing and assembly.

KR 360 R2830 has different versions:

  • KR 360 R2830 F - for foundries
  • KR 360 R2830 C - for ceiling mounting
  • KR 360 R2830 C-F - for foundries and ceiling mounting

Features:

  • Hollow design

  • Reach 2826 mm

  • High repeatability

  • Load capacity 360 kg

Manufacturer
Reach
3700 mm
Payload
480 kg
Model
KR 480 R3700-2
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 480 R3700-2
Country Germany
Reach, mm 3700
Axes 6
Payload, kg 480
Repeatability mm, mm ± 0.08
Weight kg, kg 2460
Controller KR C5
Type Articulated

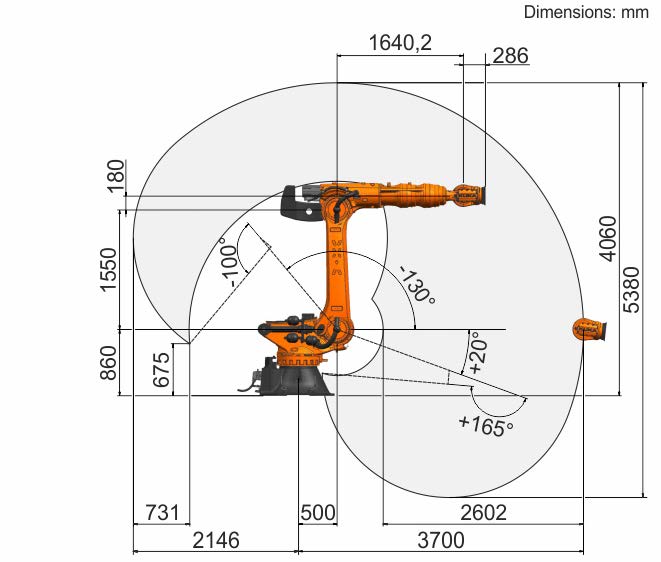

Motion range, °
A1 ± 185
A2 - 130/20
A3 - 100/165
A4 ± 350
A5 ± 120
A6 ± 350
Maximum speed, °/s
A1 80
A2 60
A3 60
A4 90
A5 90
A6 140
Protection
Protection rating (IEC 60529) IP65
Protection rating, robot wrist (IEC 60529) IP65/IP67
