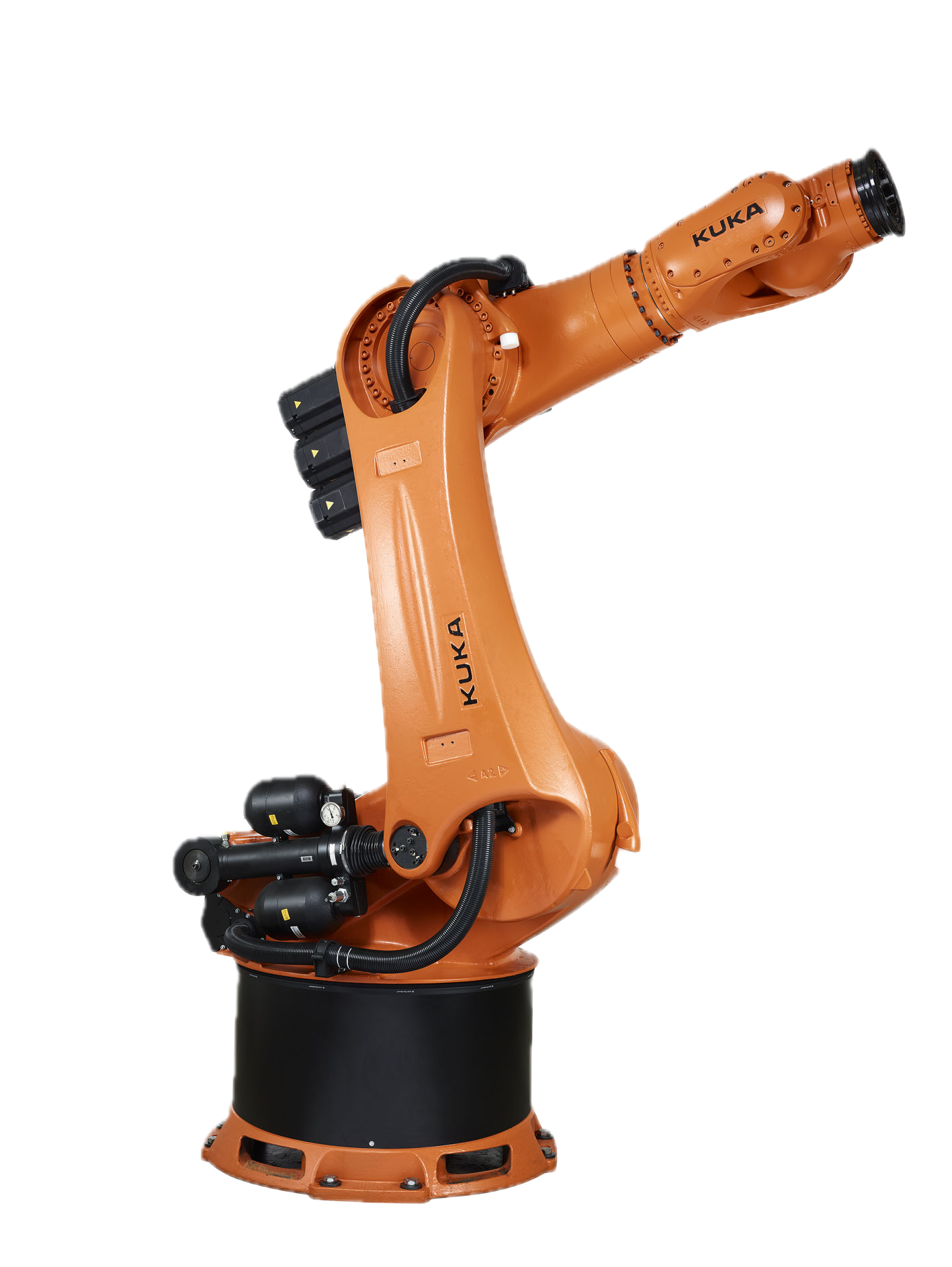

Industrial robot KUKA KR 480 R3330 MT

KR 240 R3330 is a versatile and highly accurate 6-axis industrial robot from KUKA of the KR 360 FORTEC series. KR 240 R3330 is capable of handling loads up to 240 kg in a working range of 3326 mm. The robot is suitable for a wide range of tasks from welding to palletizing and assembly.

KR 240 R3330 has various design options:

  • KR 240 R3330 F - for foundries
  • KR 240 R3330 C - for ceiling mounting

Features:

  • Hollow design

  • Reach 3326 mm

  • High repeatability

  • Load capacity 240 kg

Manufacturer
Reach
3326 mm
Payload
480 kg
Model
KR 480 R3330 MT
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 480 R3330 MT
Country Germany
Reach, mm 3326
Axes 6
Payload, kg 480
Repeatability mm, mm ± 0.08
Weight kg, kg 2475
Controller KR C4
Type Articulated
Motion range, °
A1 ± 185
A2 - 130/20
A3 - 100/144
A4 ± 350
A5 ± 120
A6 ± 350
Maximum speed, °/s
A1 45
A2 45
A3 45
A4 90
A5 83
A6 130
Protection
Protection rating (IEC 60529) IP65
Protection rating, robot wrist (IEC 60529) IP65
