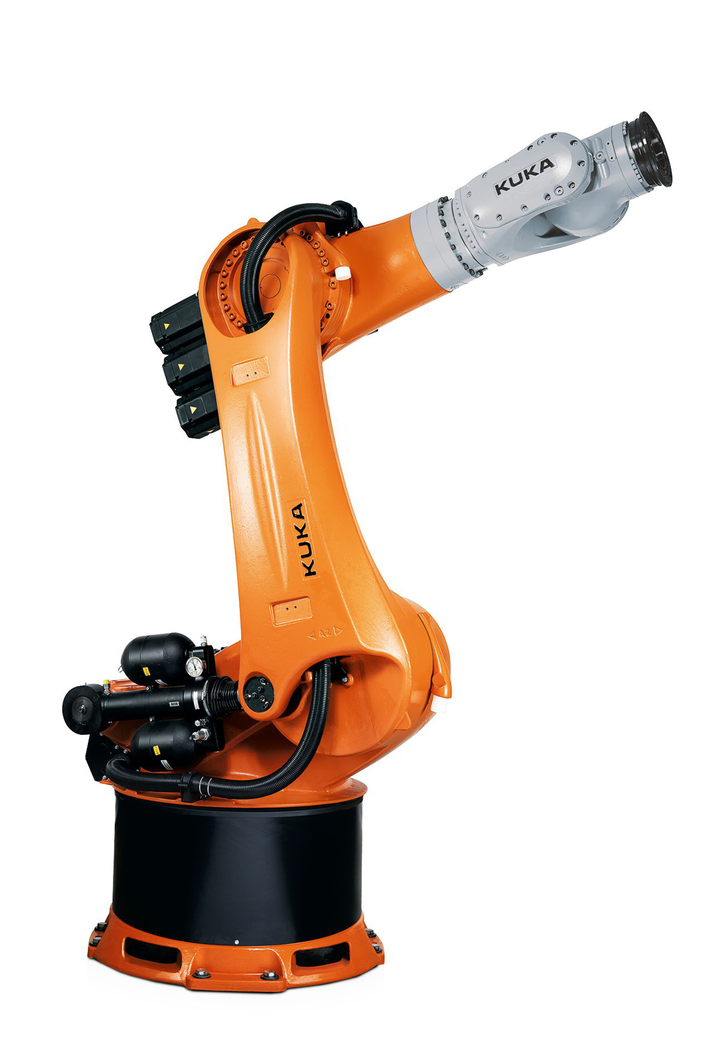

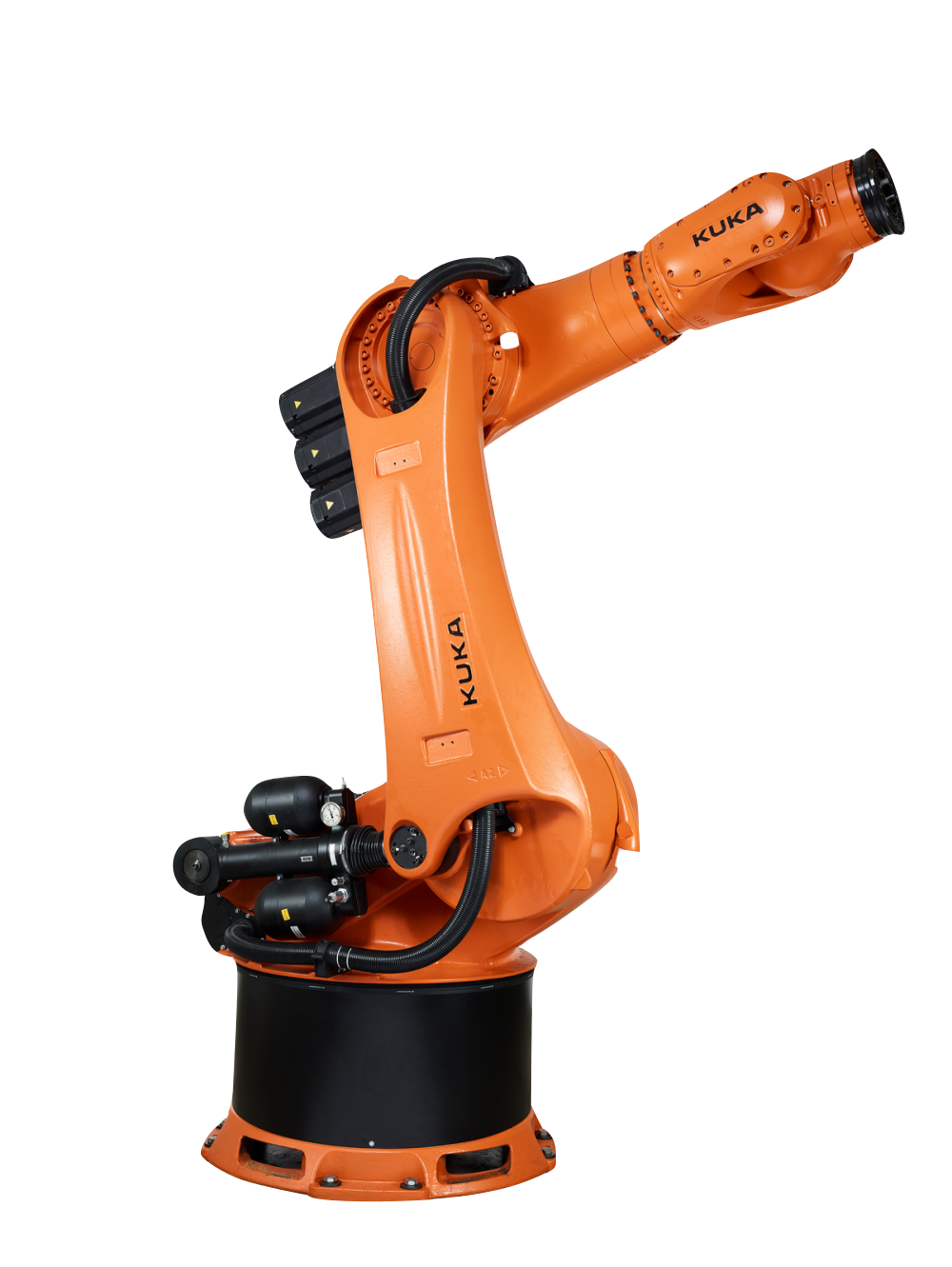

Industrial robot KUKA KR 360 R2830

KR 360 R2830 is a universal and ultra-precise 6-axis industrial robot from KUKA of the KR 360 FORTEC series. KR 360 R2830 is capable of handling loads up to 360 kg in a working range of 2826 mm. The robot is suitable for a wide range of tasks from welding to palletizing and assembly.

KR 360 R2830 has different versions:

  • KR 360 R2830 F - for foundries

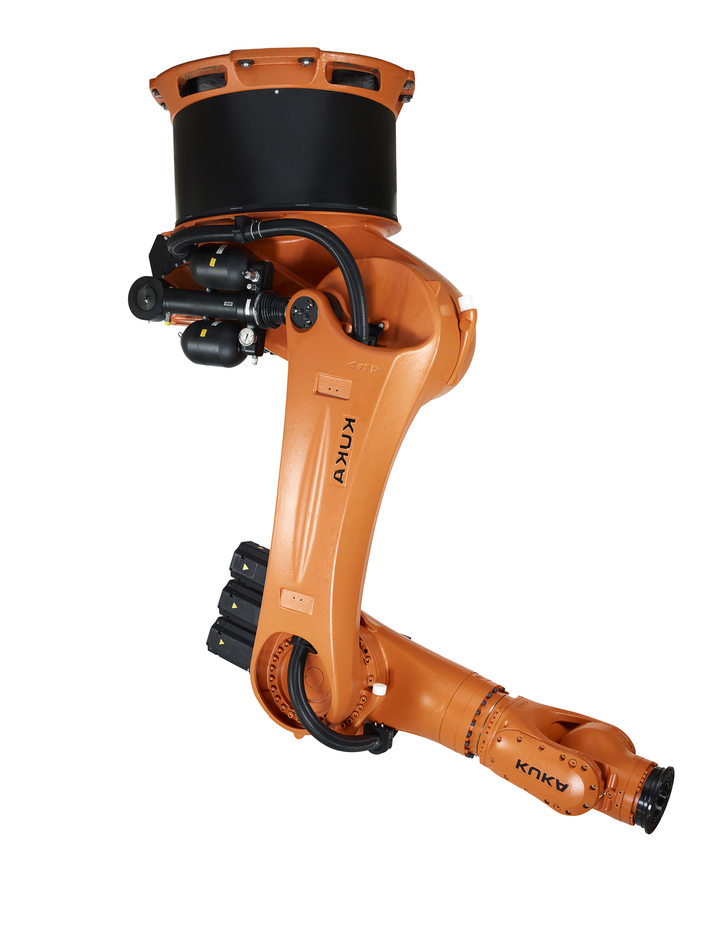

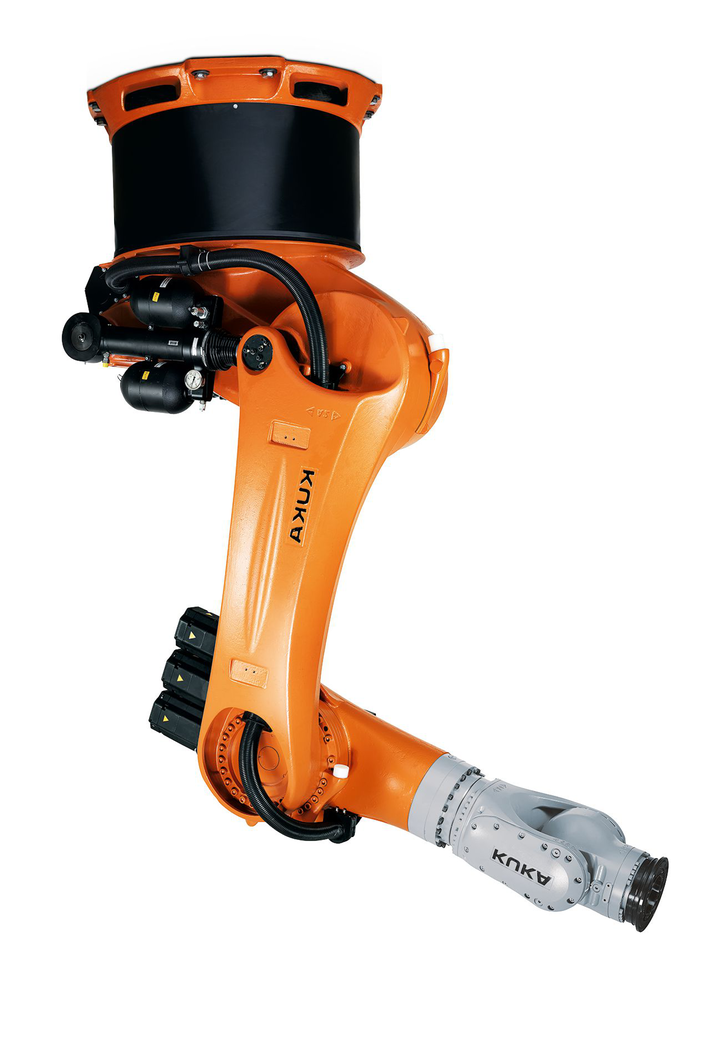

  • KR 360 R2830 C - for ceiling mounting
  • KR 360 R2830 C-F - for foundries and ceiling mounting

Features:

  • Hollow design

  • Reach 2826 mm

  • High repeatability

  • Load capacity 360 kg

Manufacturer
Reach
2826 mm
Payload
360 kg
Model
KR 360 R2830
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 360 R2830
Reach, mm 2826
Axes 6
Payload, kg 360
Repeatability mm, mm ± 0.08
Weight kg, kg 2385
Controller KUKA KR C4 Controller
Motion range, °
J1 ± 185
J2 - 130/20
J3 - 100/144
J4 ± 350
J5 ± 120
J6 ± 350
Maximum speed, °/s
J1 100
J2 100
J3 90
J4 120
J5 110
J6 160
