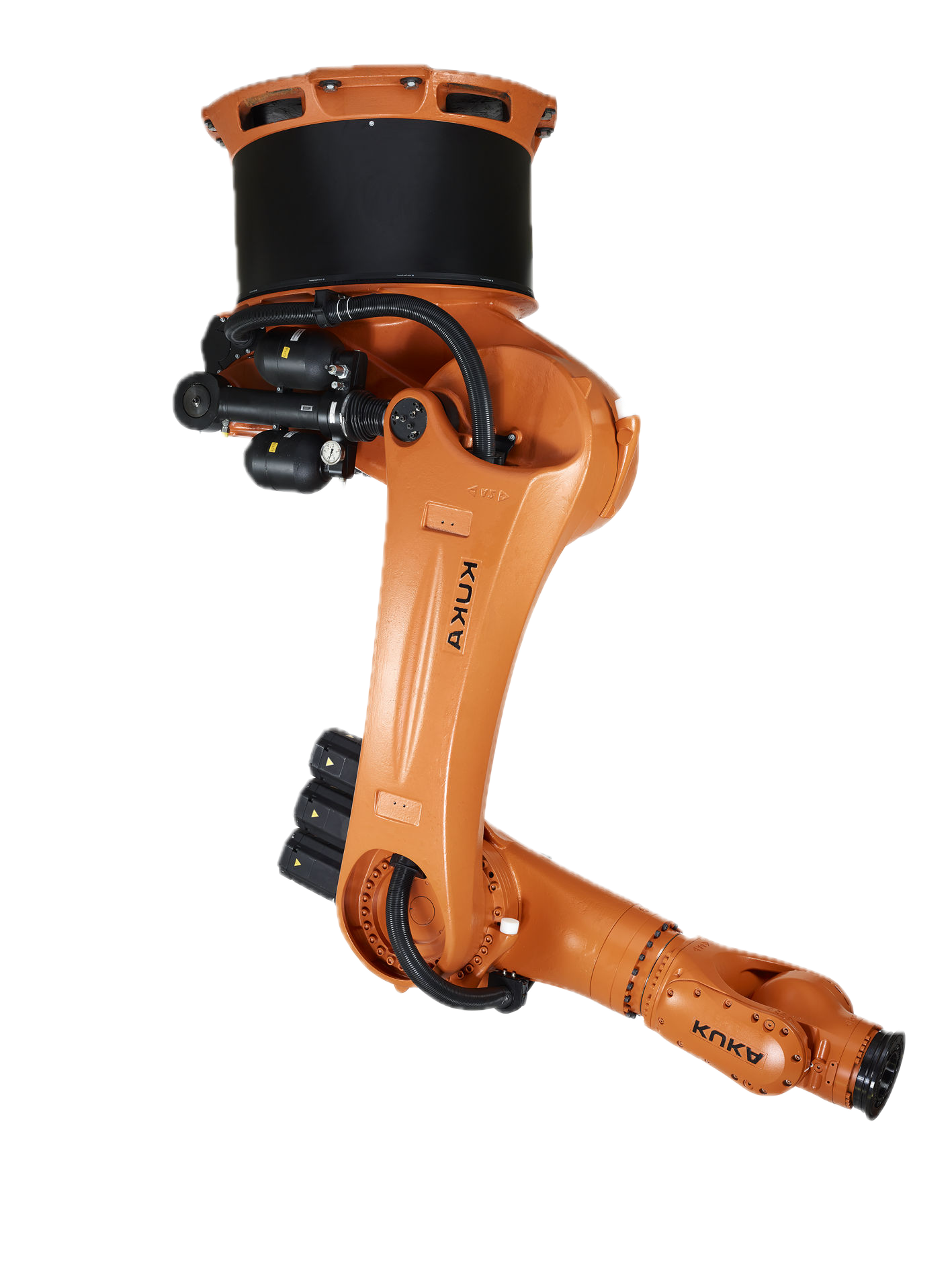

Industrial robot KUKA KR 360 R2830 C

KR 240 R3330 is a versatile and highly accurate 6-axis industrial robot from KUKA of the KR 360 FORTEC series. KR 240 R3330 is capable of handling loads up to 240 kg in a working range of 3326 mm. The robot is suitable for a wide range of tasks from welding to palletizing and assembly.

KR 240 R3330 has various design options:

  • KR 240 R3330 F - for foundries
  • KR 240 R3330 C - for ceiling mounting

Features:

  • Hollow design

  • Reach 3326 mm

  • High repeatability

  • Load capacity 240 kg

Manufacturer
Reach
2826 mm
Payload
360 kg
Model
KR 360 R2830 C
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 360 R2830 C
Country Germany
Reach, mm 2826
Axes 6
Payload, kg 360
Repeatability mm, mm ± 0.08
Weight kg, kg 2385
Controller KR C5; KR C4
Type Articulated

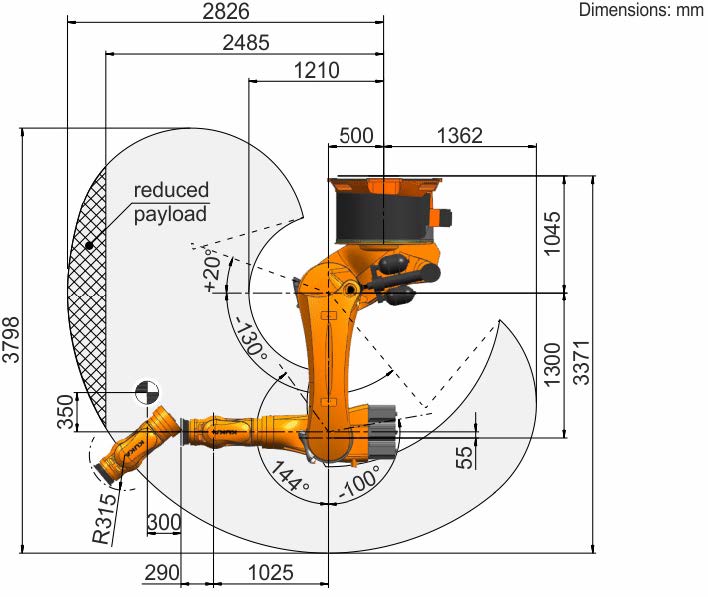

Motion range, °
A1 ± 185
A2 - 130/20
A3 - 100/144
A4 ± 350
A5 ± 120
A6 ± 350
Maximum speed, °/s
A1 100
A2 90
A3 90
A4 120
A5 110
A6 160
Protection
Protection rating (IEC 60529) IP65
Protection rating, robot wrist (IEC 60529) IP65
