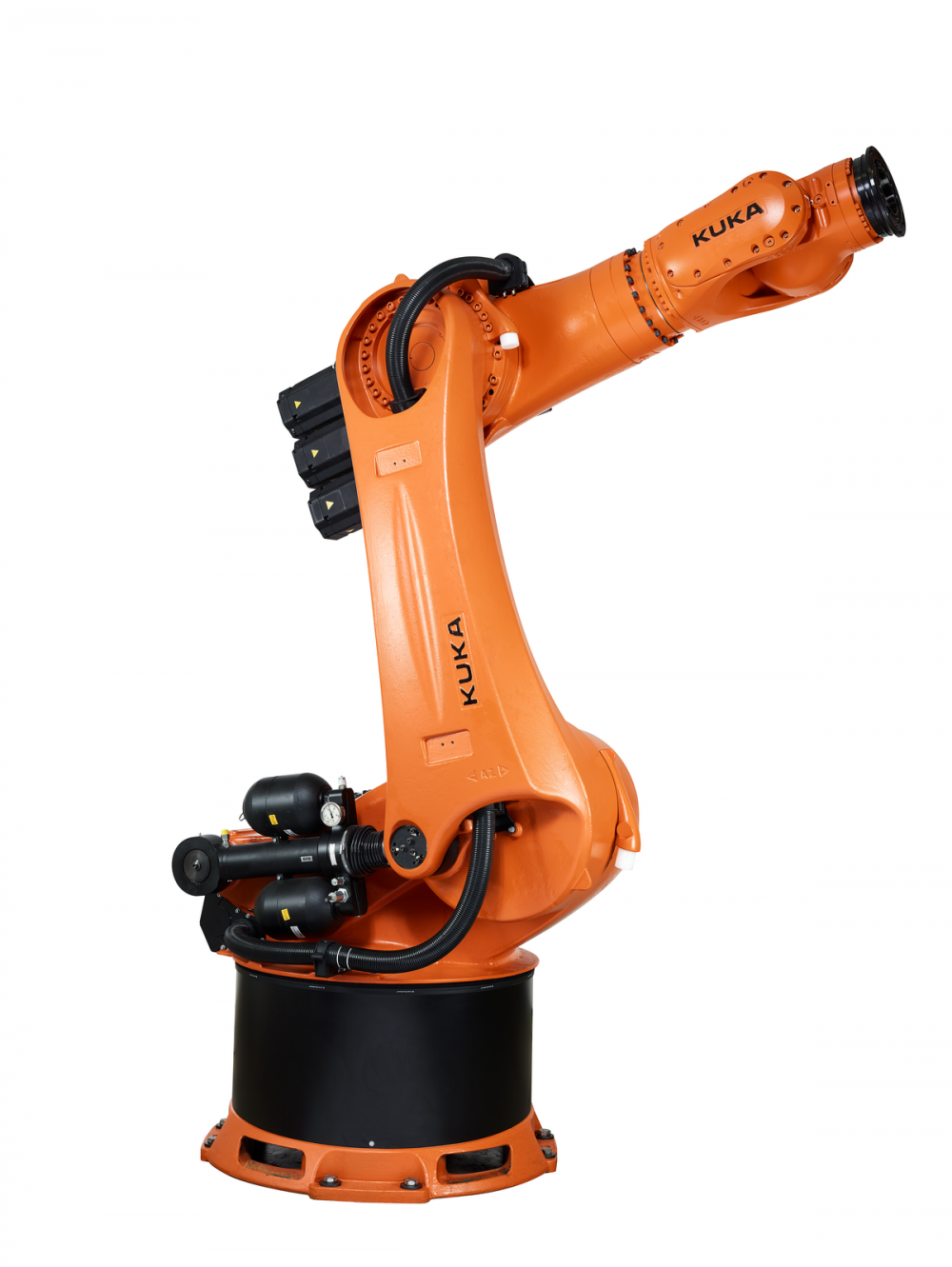

Industrial robot KUKA KR 240 R3330

KR 240 R3330 is a versatile and highly accurate 6-axis industrial robot from KUKA of the KR 360 FORTEC series. KR 240 R3330 is capable of handling loads up to 240 kg in a working range of 3326 mm. The robot is suitable for a wide range of tasks from welding to palletizing and assembly.

KR 240 R3330 has various design options:

  • KR 240 R3330 F - for foundries
  • KR 240 R3330 C - for ceiling mounting

Features:

  • Hollow design

  • Reach 3326 mm

  • High repeatability

  • Load capacity 240 kg

Manufacturer
Reach
3326 mm
Payload
240 kg
Model
KR 240 R333
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 240 R333
Reach, mm 3326
Axes 6
Payload, kg 240
Repeatability mm, mm ± 0.08
Weight kg, kg 2421
Controller KUKA KR C4 Controller
Motion range, °
J1 ± 185
J2 - 130/20
J3 - 100/144
J4 ± 350
J5 ± 120
J6 ± 350
Maximum speed, °/s
J1 100
J2 90
J3 90
J4 120
J5 110
J6 160
