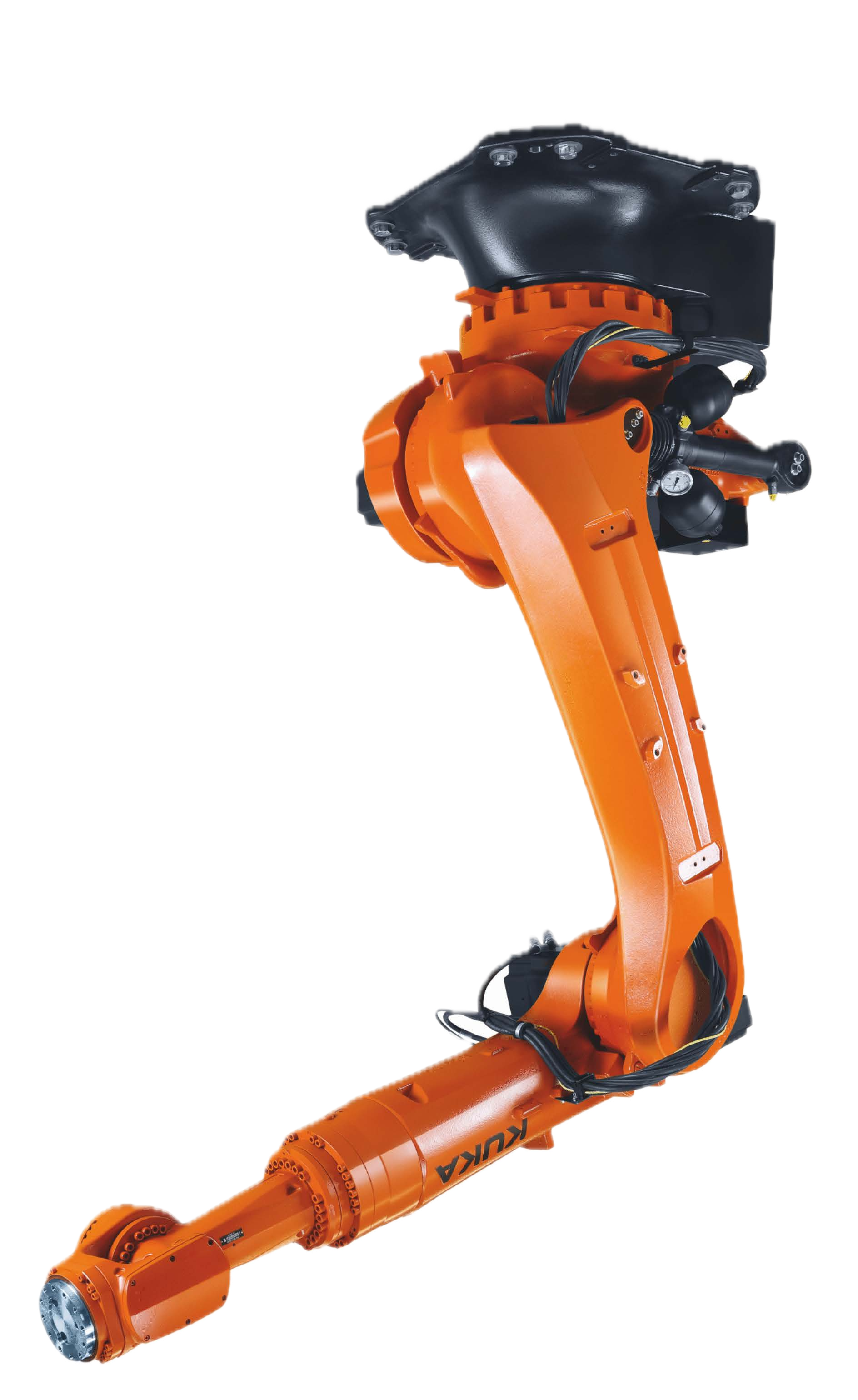

Industrial robot KUKA KR 240 R2900-2 C

KR 240 R3330 is a versatile and highly accurate 6-axis industrial robot from KUKA of the KR 360 FORTEC series. KR 240 R3330 is capable of handling loads up to 240 kg in a working range of 3326 mm. The robot is suitable for a wide range of tasks from welding to palletizing and assembly.

KR 240 R3330 has various design options:

  • KR 240 R3330 F - for foundries
  • KR 240 R3330 C - for ceiling mounting

Features:

  • Hollow design

  • Reach 3326 mm

  • High repeatability

  • Load capacity 240 kg

Manufacturer
Reach
2865 mm
Payload
240 kg
Model
KR 240 R2900-2 C
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 240 R2900-2 C
Country Germany
Reach, mm 2865
Axes 6
Payload, kg 240
Repeatability mm, mm ± 0.05
Weight kg, kg 1125
Controller KR C5; KR C4
Type Articulated

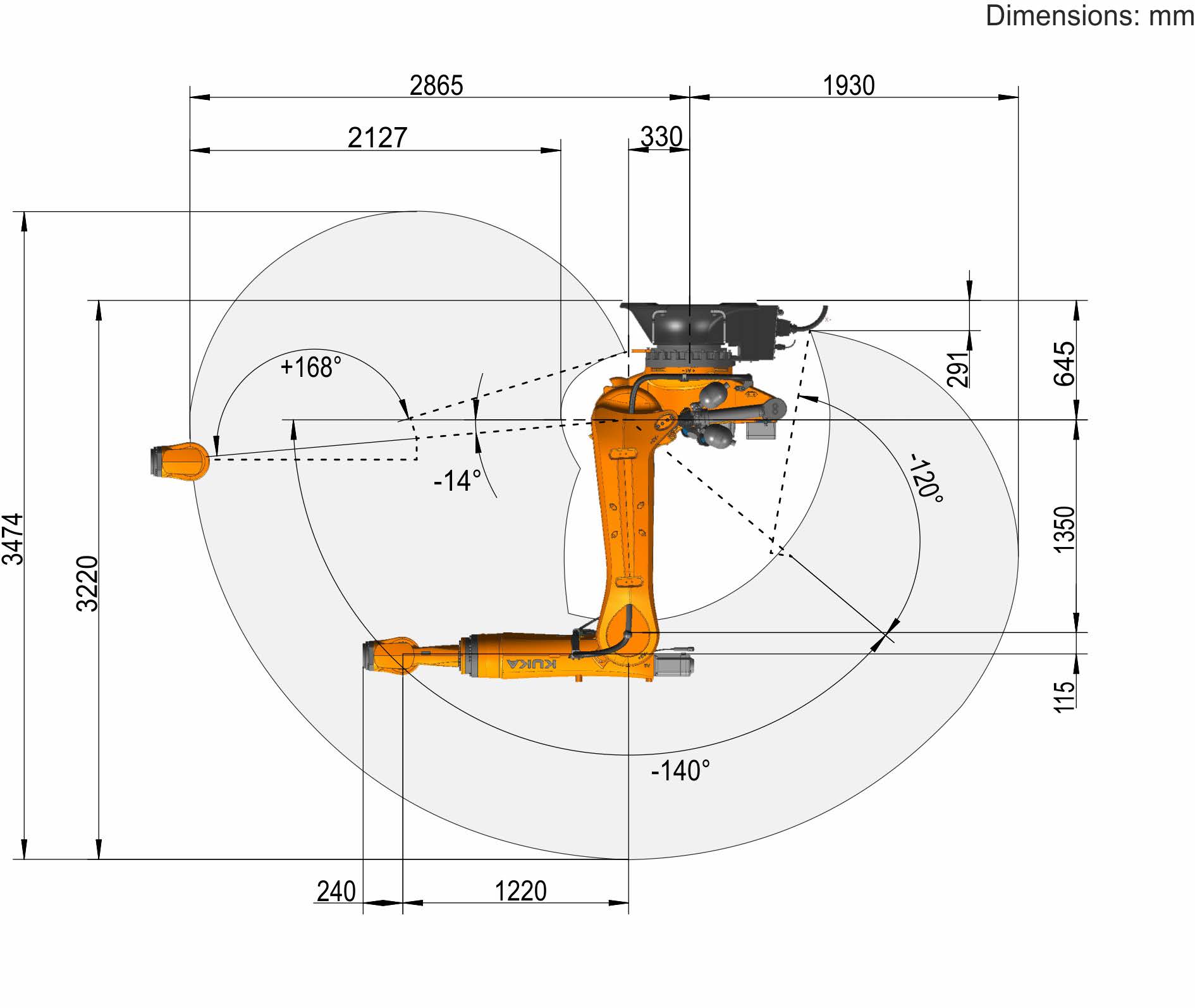

Motion range, °
A1 ± 185
A2 - 140/-14
A3 - 120/168
A4 ± 350
A5 ± 122.5
A6 ± 350
Maximum speed, °/s
A1 103
A2 94
A3 100
A4 170
A5 129
A6 206
Protection
Protection rating (IEC 60529) IP65
Protection rating, robot wrist (IEC 60529) IP65/IP67
