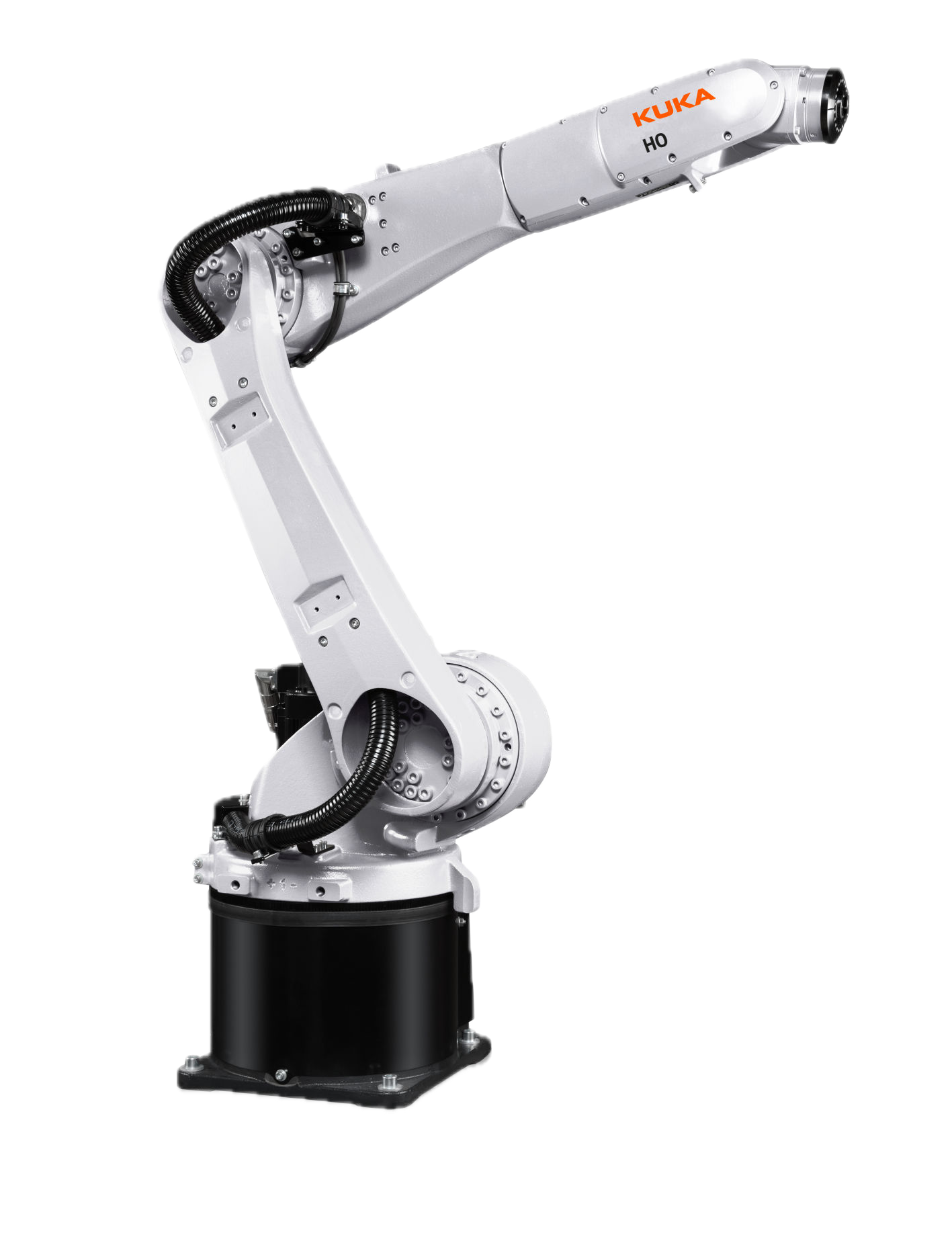

Industrial robot KUKA KR 10 R1440-2 HO
KR 10 R1440-2 is a universal 6-axis industrial robot with a compact and hollow design from the KUKA KR CYBERTECH nano series, capable of providing maximum productivity due to high speed and positioning accuracy. KR 10 R1440-2 is ideal for work in confined spaces, for tasks requiring handling of loads up to 10 kg, assembly, packaging and welding.
Features:
Hollow and compact design
Large radius of action 1440 mm
Various mounting options
Possibility to work in limited spaces
- Manufacturer
-
- Reach
- 1440 mm
- Payload
- 10 kg
- Model
- KR 10 R1440-2 HO
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 10 R1440-2 HO |
| Country | Germany |
| Reach, mm | 1440 |
| Axes | 6 |
| Payload, kg | 10 |
| Repeatability mm, mm | ± 0.04 |
| Weight kg, kg | 153 |
| Controller | KR C5; KR C5 micro |
| Type | Articulated |

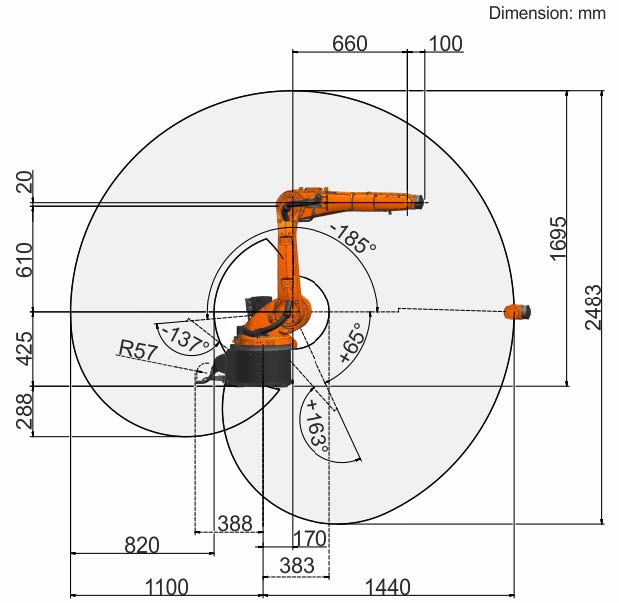

| Motion range, ° | |
|---|---|
| A1 | ±170 |
| A2 | -185/65 |
| A3 | -137/163 |
| A4 | ±185 |
| A5 | ±120 |
| A6 | ±350 |
| Maximum speed, °/s | |
|---|---|
| A1 | 220 |
| A2 | 210 |
| A3 | 270 |
| A4 | 381 |
| A5 | 311 |
| A6 | 472 |
