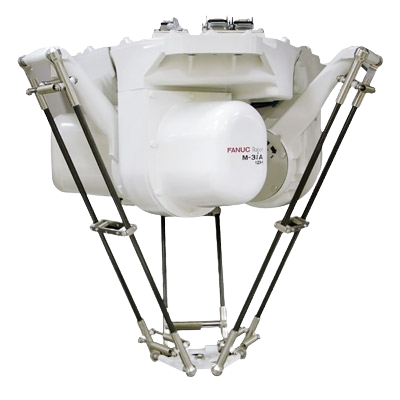

Industrial Robot FANUC M-3iA/12H

This model features a high-speed wrist designed for low to medium load applications. Additional cable protection is provided by routing services through the robot's hollow wrist. This makes this model ideally suited to environments where jerking may be an issue.

Features:

High precision
Load capacity 12 kg
Working range 1350 mm

Manufacturer

Reach: 1350 mm
Payload: 12 kg

Model: M-3iA/12H
Axes: 3

Industries

Food industry
Production of consumer goods

Solutions

Packaging
Assembly
Pick & Place

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	M-3iA/12H
Country	Japan
Reach, mm	1350
Axes	3

Payload, kg	12
Repeatability mm, mm	± 0.1
Weight kg, kg	155
Controller	R-30iB Plus
Type	Delta

Motion range, °
J1	Ø 1350 x 500*3
J2	Ø 1350 x 500*3
J3	Ø 1350 x 500*3

Protection
body	IP67
wrist & J3 arm	IP67
