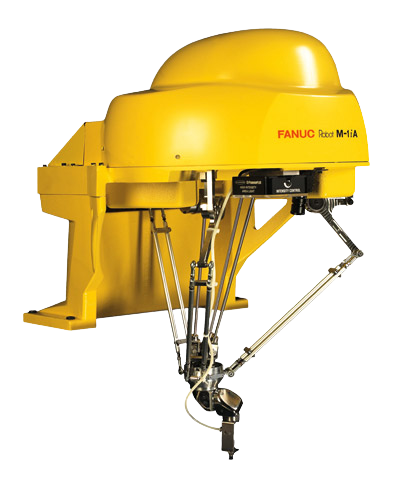

Industrial Robot FANUC M-1iA/0.5A
Extremely versatile and agile, this model achieves excellent performance in complex component assembly operations. Capable of working at any angle, it is the perfect choice for applications (such as assembly and picking) that require flexibility and a high level of repeatability.
Features:
High precision
Load capacity 0.5 kg
Working range 280 mm
- Manufacturer
-
- Reach
- 280 mm
- Payload
- 0.5 kg
- Model
- M-1iA/0.5A
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-1iA/0.5A |
| Country | Japan |
| Reach, mm | 280 |
| Axes | 6 |
| Payload, kg | 0.5 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 23*2 |
| Controller | R-30iB Plus |
| Type | Delta |
| Motion range, ° | |
|---|---|
| J1 | Ø 280 x 100*3 |
| J2 | Ø 280 x 100*3 |
| J3 | Ø 280 x 100*3 |
| J4 | 720 |
| J5 | 300 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J4 | 1440 |
| J5 | 1440 |
| J6 | 1440 |
| Protection | |
|---|---|
| body | IP20 |
| wrist & J3 arm | IP20 |
