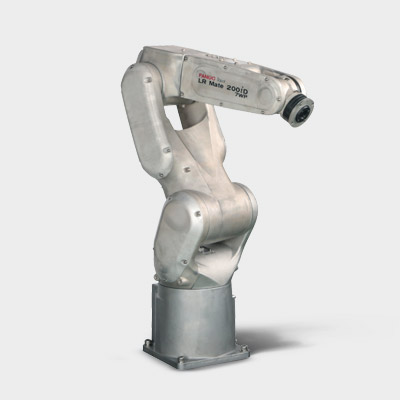

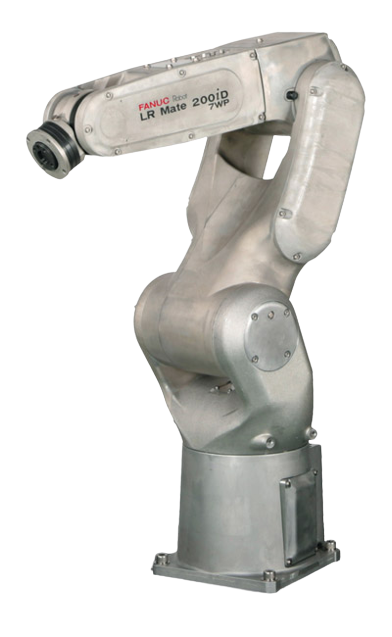

Industrial Robot FANUC LR Mate 200iD/7WP

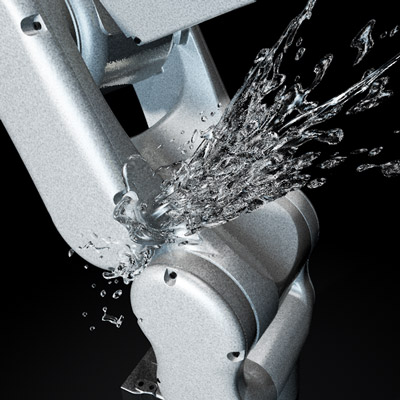

Designed to withstand wet conditions, this compact 6-axis model is ideal for wet environments and can be easily integrated into confined spaces and machinery. Like other LR Mate robots, it is available with a range of options including integrated intelligence (vision & power).

Features:

Ability to work in confined spaces
Load capacity 7 kg
Working range 717 mm

Manufacturer

Reach: 717 mm
Payload: 7 kg

Model: LR Mate 200iD/7WP
Axes: 6

Industries

Production of consumer goods

Solutions

Pick & Place
Packaging
Machine Tending
Assembly

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	LR Mate 200iD/7WP
Country	Japan
Reach, mm	717
Axes	6

Payload, kg	7
Repeatability mm, mm	± 0.018
Weight kg, kg	25
Controller	R-30iB Plus

Motion range, °
J1	360
J2	245
J3	420
J4	380
J5	250
J6	720

Maximum speed, °/s
J1	450
J2	380
J3	520
J4	550
J5	545
J6	1000

Protection
body	IP67
wrist & J3 arm	IP67
