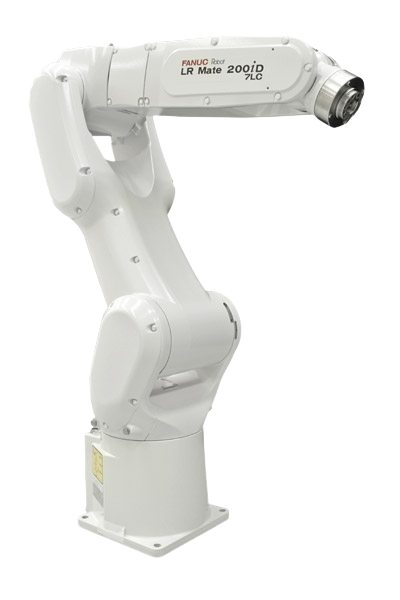

Industrial Robot FANUC LR Mate 200iD/7LC

High performance in cleanrooms for manufacturing and laboratory applications, this 6-axis version offers added versatility thanks to its increased reach. Like all LR Mate robots, it is also available with a range of options including integrated intelligence (vision & power) and special application packages.

Features:

High precision
Load capacity 7 kg
Working range 911 mm

Manufacturer

Reach: 911 mm
Payload: 7 kg

Model: LR Mate 200iD/7LC
Axes: 6

Industries

Food industry
Medicine (pharmaceuticals)

Solutions

Pick & Place
Packaging
Machine Tending
Assembly

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	LR Mate 200iD/7LC
Country	Japan
Reach, mm	911
Axes	6

Payload, kg	7
Repeatability mm, mm	± 0.018
Weight kg, kg	27
Controller	R-30iB Plus

Motion range, °
J1	360
J2	245
J3	430
J4	380
J5	250
J6	720

Maximum speed, °/s
J1	370
J2	310
J3	410
J4	550
J5	545
J6	1000

Protection
body	IP67
wrist & J3 arm	IP67
