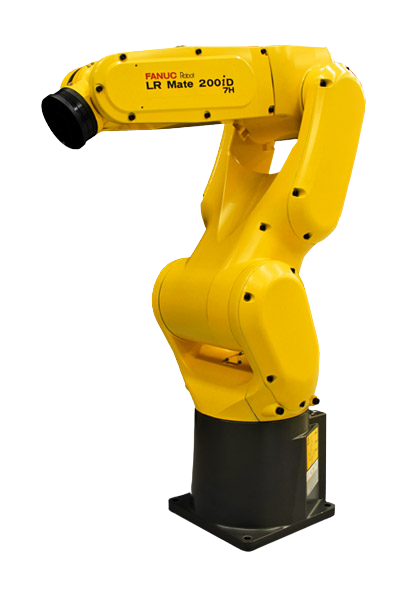

Industrial Robot FANUC LR Mate 200iD/7H
This ultra-compact 5-axis robot is easy to integrate into tight spaces. Like all LR Mate robots, it is also available with a range of options, including built-in intelligence (vision and power), dedicated application packages and full IP69K protection.
Features:
High precision
Load capacity 7 kg
Working range 717 mm
- Manufacturer
-
- Reach
- 717 mm
- Payload
- 7 kg
- Model
- LR Mate 200iD/7H
- Axes
- 5
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | LR Mate 200iD/7H |
| Country | Japan |
| Reach, mm | 717 |
| Axes | 5 |
| Payload, kg | 7 |
| Repeatability mm, mm | ± 0.018 |
| Weight kg, kg | 24 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 245 |
| J3 | 420 |
| J4 | 250 |
| J5 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 450 |
| J2 | 380 |
| J3 | 520 |
| J4 | 545 |
| J5 | 1500 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
