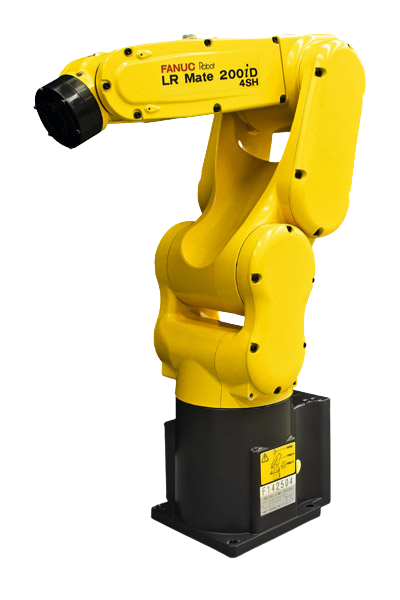

Industrial Robot FANUC LR Mate 200iD/4SH

With a 550 mm reach and high-speed wrist, this ultra-compact 5-axis short-arm version is ideal for confined workspaces and compact machines. Extremely easy to integrate, this model is also available with a range of options including integrated intelligence (vision & power), special application packages and full IP69K protection.

Features:

High precision
Load capacity 4 kg
Working range 550 mm

Manufacturer

Reach: 550 mm
Payload: 4 kg

Model: LR Mate 200iD/4SH
Axes: 5

Industries

Production of consumer goods

Solutions

Pick & Place
Packaging
Machine Tending
Assembly

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	LR Mate 200iD/4SH
Country	Japan
Reach, mm	550
Axes	5

Payload, kg	4
Repeatability mm, mm	± 0.02
Weight kg, kg	19
Controller	R-30iB Plus

Motion range, °
J1	360
J2	320
J3	402
J4	240
J5	720

Maximum speed, °/s
J1	460
J2	460
J3	520
J4	560
J5	1500

Protection
body	IP67
wrist & J3 arm	IP67
