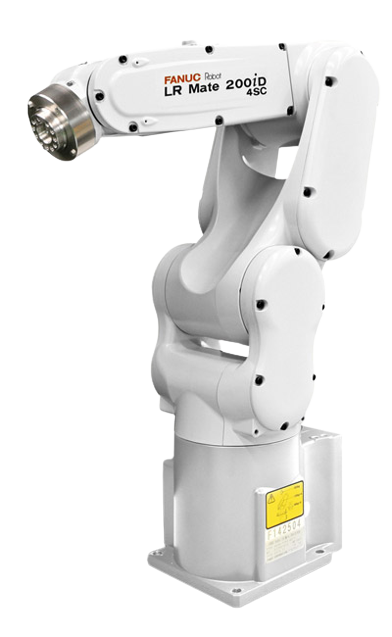

Industrial Robot FANUC LR Mate 200iD/4SC
This flexible 6-axis mini short arm robot has a payload of 4 kg. Easily integrated into confined spaces, it is specifically designed for high-speed pick, place and assembly applications in cleanroom and food environments. Like other LR Mate robots, it is available with a range of options including integrated intelligent vision and force functionality.
Features:
High precision
Ability to work in confined spaces
Load capacity 4 kg
Working range 550 mm
- Manufacturer
-
- Reach
- 550 mm
- Payload
- 4 kg
- Model
- LR Mate 200iD/4SC
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | LR Mate 200iD/4SC |
| Country | Japan |
| Reach, mm | 550 |
| Axes | 6 |
| Payload, kg | 4 |
| Repeatability mm, mm | ± 0.013 |
| Weight kg, kg | 20 |
| Controller | R-30iB Plus |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 230 |
| J3 | 402 |
| J4 | 380 |
| J5 | 236 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 460 |
| J2 | 460 |
| J3 | 520 |
| J4 | 560 |
| J5 | 560 |
| J6 | 900 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
