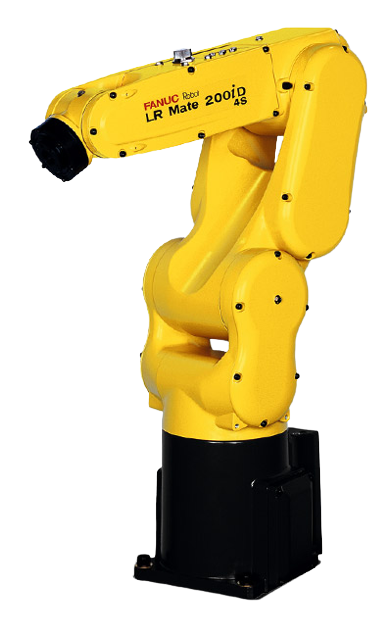

Industrial Robot FANUC LR Mate 200iD/4S

Extremely compact, this 6-axis short arm robot has been designed for limited spaces and compact machines. Easy to integrate, this model is also available with a range of options including integrated intelligent (vision & power) functionality and special application packages.

Features:

High speed
Ability to work in limited spaces
Load capacity 4 kg
Working range 550 mm

Manufacturer

Reach: 550 mm
Payload: 4 kg

Model: LR Mate 200iD/4S
Axes: 6

Industries

Production of consumer goods

Solutions

Pick & Place
Packaging
Machine Tending
Assembly

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	LR Mate 200iD/4S
Country	Japan
Reach, mm	550
Axes	6

Payload, kg	4
Repeatability mm, mm	± 0.01
Weight kg, kg	20
Controller	R-30iB Plus

Motion range, °
J1	360
J2	230
J3	402
J4	380
J5	240
J6	720

Maximum speed, °/s
J1	460
J2	460
J3	520
J4	560
J5	560
J6	900

Protection
body	IP67
wrist & J3 arm	IP67
