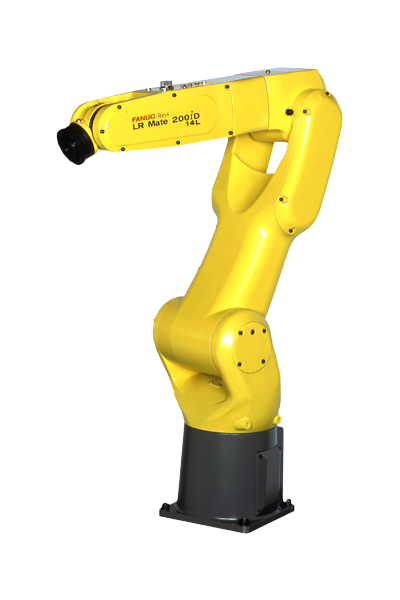

Industrial Robot FANUC LR Mate 200iD/14L

The compact, enhanced mechanical structure enables the highest payload of the LR Mate series. Offering an exceptional weight-to-load ratio of 27 kg and a payload of 14 kg, this model is ideal for compact robot cells, production lines and direct mounting into or on machines. With very high torque and inertia at the wrist, it is the perfect solution for high-productivity handling, stacking and assembly applications.

Features:

  • High precision

  • Load capacity 14 kg

  • Working range 922 mm

Manufacturer
fanuc-logo
Reach
911 mm
Payload
14 kg
Model
LR Mate 200iD/14L
Axes
6
Industries
Solutions
Get Quotation

Specifications

Manufacturer Fanuc
Model LR Mate 200iD/14L
Country Japan
Reach, mm 911
Axes 6
Payload, kg 14
Repeatability mm, mm ± 0.01
Weight kg, kg 27
Controller R-30iB Plus
Motion range, °
J1 360
J2 245
J3 430
J4 380
J5 250
J6 720
Maximum speed, °/s
J1 120
J2 61
J3 58
J4 400
J5 240
J6 400
Protection
body IP67
wrist & J3 arm IP67
