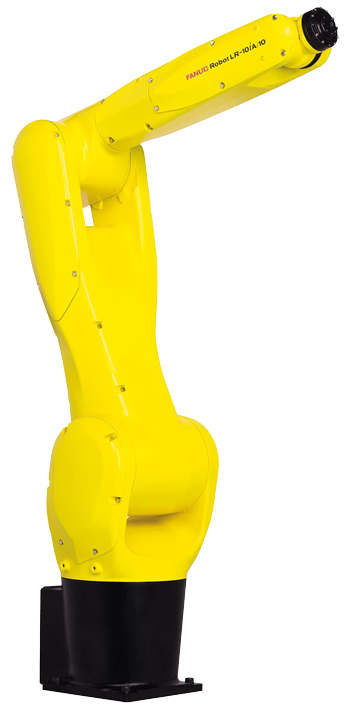

Industrial Robot FANUC LR-10iA/10
The FANUC LR-10iA/10 is a compact 6-axis robot designed for machine maintenance as well as a variety of picking applications found in the warehousing and logistics market. This robot is an ideal solution for companies with limited floor space, as its slim arms fit comfortably on machine tools for picking and unloading parts. Weighing just 46 kg, the LR-10iA/10 can be mounted on the floor, upside down or tilted. It is also easy to attach the robot to an AGV or other mobile platform to handle a variety of repetitive tasks or automate machines that are in standby mode.
Features:
Ability to work in confined spaces
Load capacity 10 kg
Working range 1 101 mm
- Manufacturer
-
- Reach
- 1101 mm
- Payload
- 10 kg
- Model
- LR-10iA/10
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | LR-10iA/10 |
| Country | Japan |
| Reach, mm | 1101 |
| Axes | 6 |
| Payload, kg | 10 |
| Repeatability mm, mm | ± 0.01 |
| Weight kg, kg | 46 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 235 |
| J3 | 421 |
| J4 | 380 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 300 |
| J2 | 230 |
| J3 | 340 |
| J4 | 500 |
| J5 | 400 |
| J6 | 800 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
