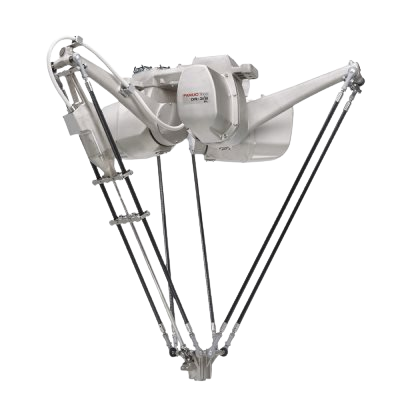

Industrial Robot FANUC DR-3iB/8L

The combination of a payload of 8 kg, a horizontal reach of 1,600 mm, a vertical reach of 500 mm and a wrist inertia of 0.2 kgm2 makes this model suitable for a wide range of special applications, from the food industry, general material handling to the energy sector. Advanced motion performance, with movement speeds of up to 10,000 mm/s, makes the DR-3iB/8L the perfect choice for general pick and place applications as well as packaging applications, e.g. in the food and pharmaceutical industries.

Features:

  • High precision

  • Load capacity 8 kg

  • Working range 1600 mm

Manufacturer
fanuc-logo
Reach
1600 mm
Payload
8 kg
Model
DR-3iB/8L
Axes
4
Industries
Solutions
Get Quotation

Specifications

Manufacturer Fanuc
Model DR-3iB/8L
Country Japan
Reach, mm 1600
Axes 4
Payload, kg 8
Repeatability mm, mm ± 0.03
Weight kg, kg 170
Controller R-30iB Plus
Type Delta
Motion range, °
J1 Ø 1600 x 500*3
J2 Ø 1600 x 500*3
J3 Ø 1600 x 500*3
J4 720
Maximum speed, °/s
J4 2000
Protection
body IP67
wrist & J3 arm IP67
