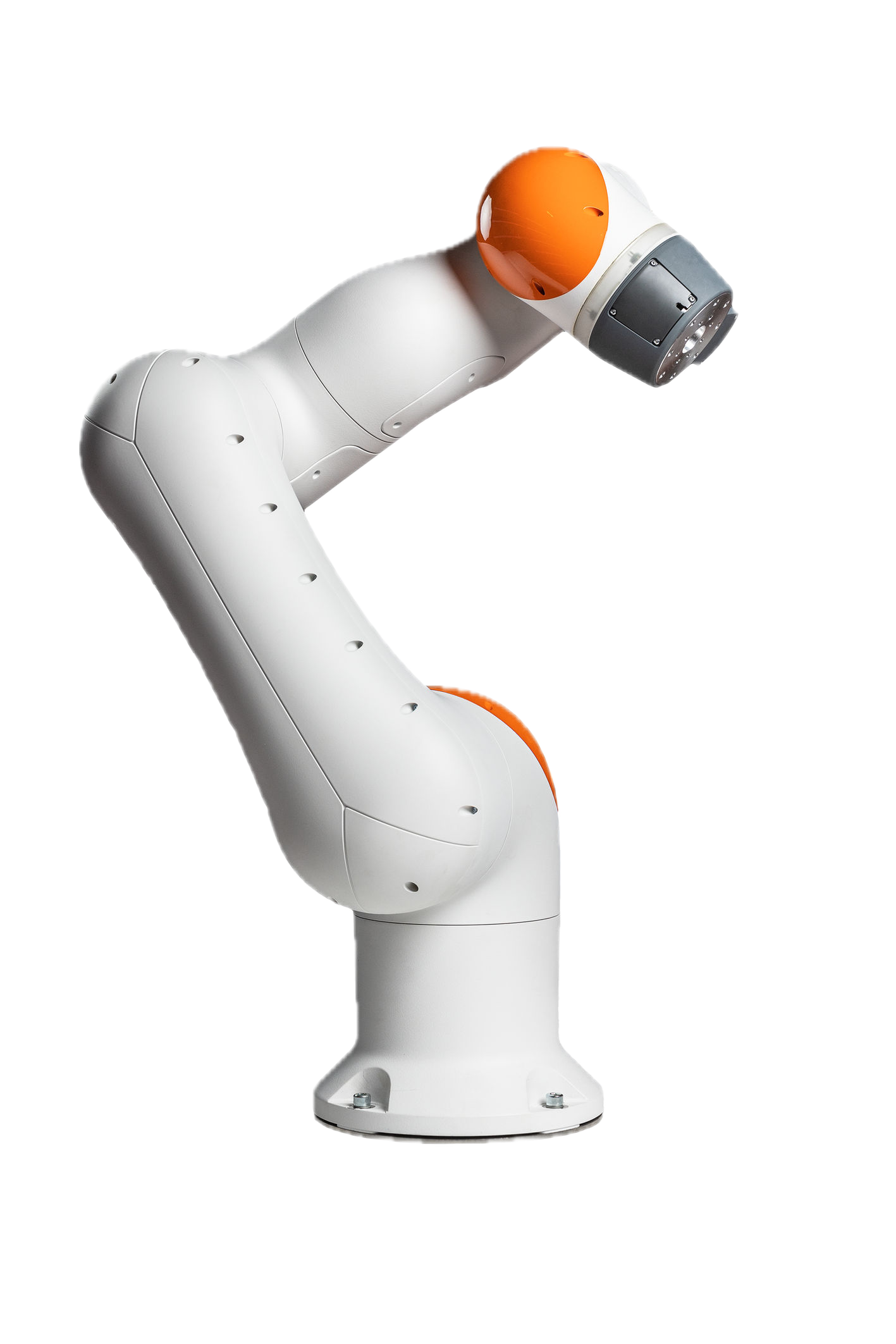

Kuka Cobot KUKA LBR iisy 15 R930

LBR iisy is the new and first collaborative robot from KUKA, running on the iiQKA operating system and with the KR C5 controller. LBR iisy is compact and lightweight, has 6 degrees of freedom and a working range of 600 mm, is able to precisely manipulate objects up to 3 kg, and sensors facilitate safe collaboration with people. The KUKA LBR iisy cobot is easy to operate and program, it is enough to move it by hand to set the desired coordinates, and the latest iiQKA operating system opens up incredible and previously inaccessible possibilities for automating processes with the LBR iisy cobot.

Features:

  • Working range 600 mm

  • Safe interaction with humans

  • Does not require protective fences

  • Easy to program and operate

  • Ability to work in limited spaces

Manufacturer
Reach
930 mm
Payload
15 kg
Model
LBR iisy 15 R930
Axes
6
Industries
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model LBR iisy 15 R930
Country Germany
Reach, mm 930
Axes 6
Payload, kg 15
Repeatability mm, mm ± 0.05
Weight kg, kg 43.2
Mounting position Floor, Ceiling, Wall, Desired angle
Controller KR C5 micro
Type Cobot

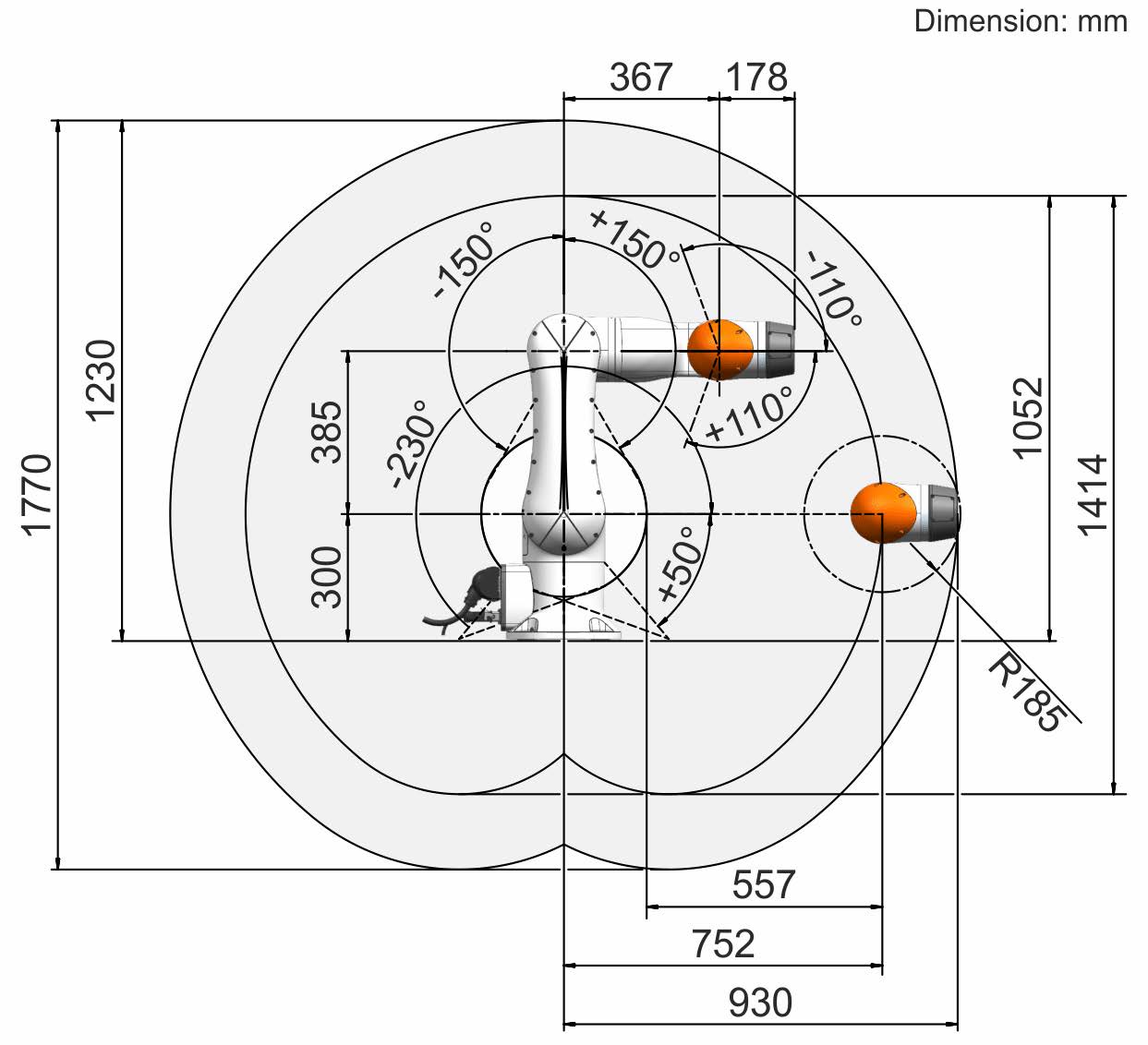

Motion range, °
A1 ± 185
A2 - 230/ 50
A3 ± 150
A4 ± 180
A5 ± 110
A6 ± 220
Maximum speed, °/s
A1 200
A2 200
A3 200
A4 230
A5 260
A6 380
Protection
Protection rating (IEC 60529) IP54
