Welding Robot Kawasaki BX250L

The BX250L is a 6-axis hollow wrist industrial robot from Kawasaki capable of handling objects weighing up to 250 kg. The BX250L features high speed and positioning accuracy, an average working range of 2812 mm, and is suitable for spot welding automation, machine maintenance, assembly, and material handling.

Features:

  • High speed and positioning accuracy

  • Working range 2812 mm

  • Load capacity 250 kg

Manufacturer

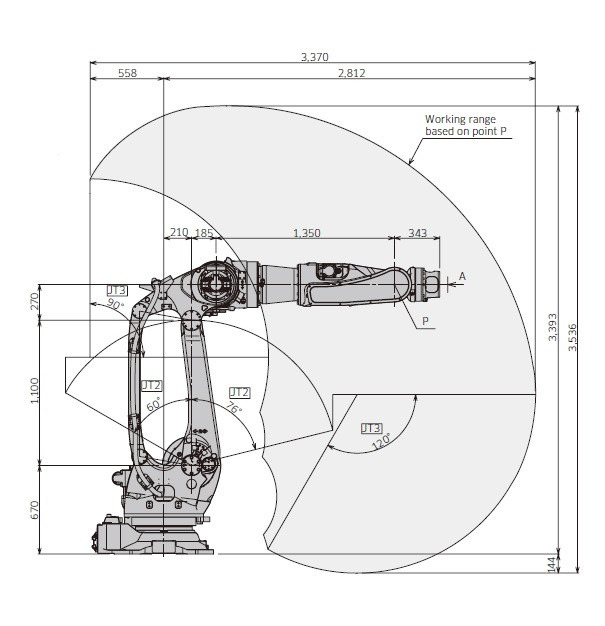

Reach
2812 mm
Payload
250 kg
Model
BX250L
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model BX250L
Reach, mm 2812
Axes 6
Payload, kg 250
Repeatability mm, mm ± 0.07
Weight kg, kg 1460
Controller E02
Motion range, °
J1 ± 180
J2 + 76/-60
J3 +90/-120
J4 ± 210
J5 ± 125
J6 ± 210
Maximum speed, °/s
J1 125
J2 120
J3 100
J4 140
J5 140
J6 200
